TC Bros. Model A Side Mount Tail Light/License Plate Bracket
TC Bros. Model A Side Mount Tail Light/License Plate

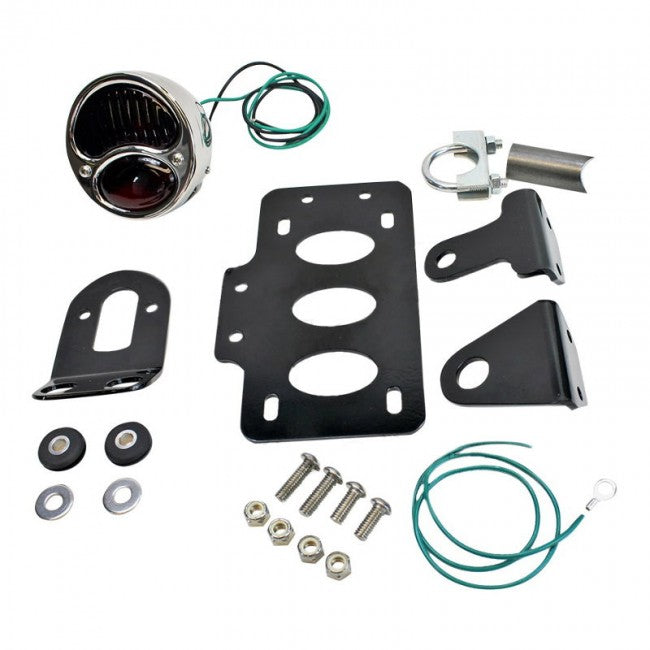

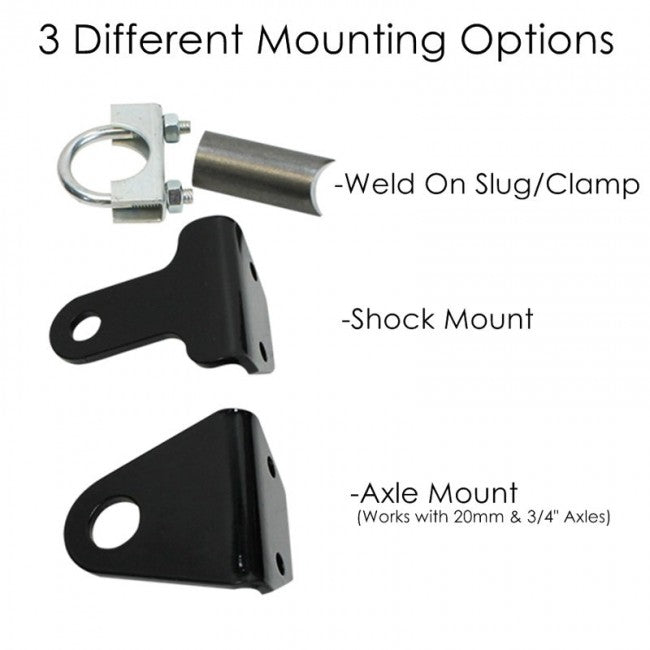

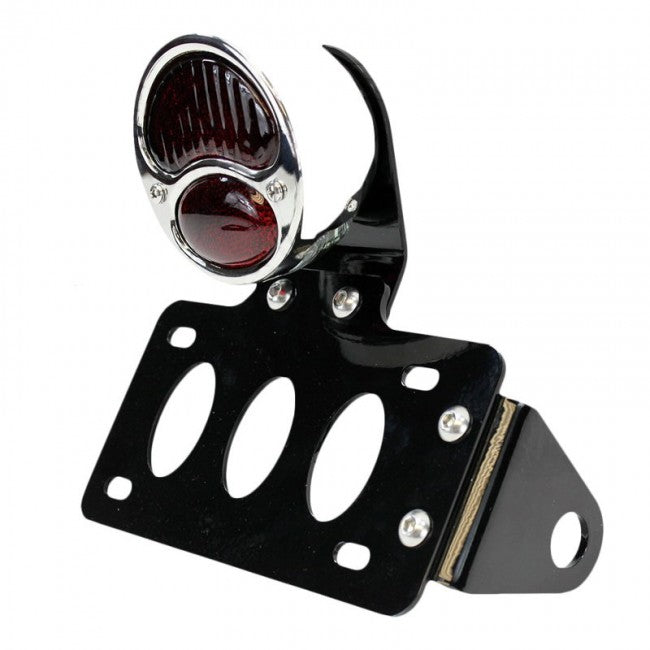

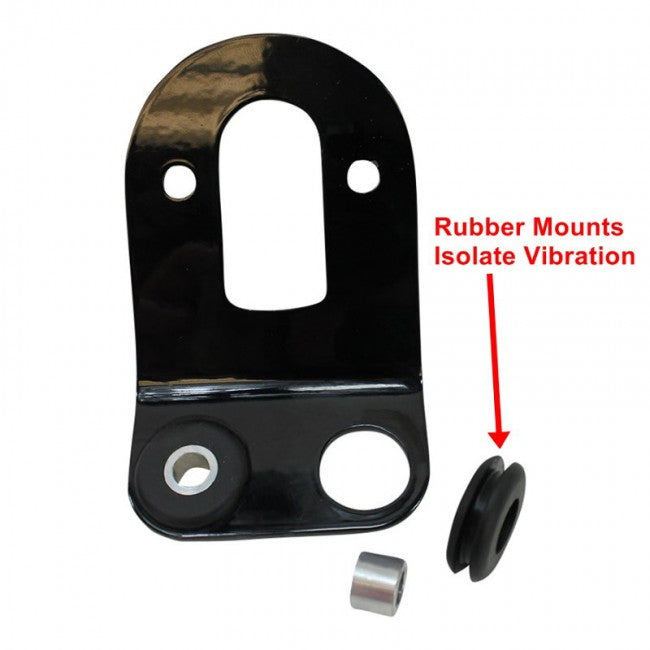

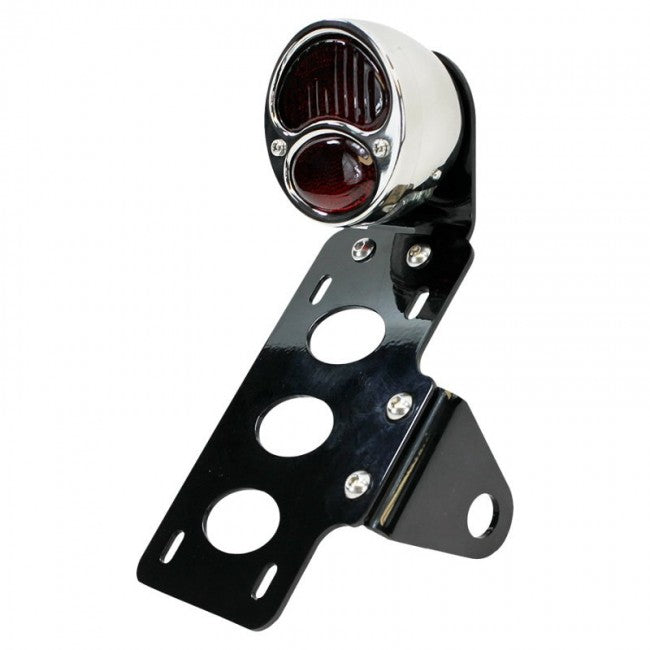

TC Bros. Side Mount License Plate/Tail Light Bracket (12-volt tail light included). Our unique, bolt-together design allows the license plate to be mounted horizontally or vertically on either the left or right side of the bike. Kit includes three different mounting brackets making it the most universal design available. You can bolt this bracket to your axle, shock, or weld the included raw steel slug anywhere on your frame and clamp it to that. The axle mount hole is .787" diameter, which is compatible with Harley's with 3/4" axles and Metric bikes with up to 20mm axles. TC Bros. exclusive Hardtail-Proof™ rubber mounting system isolates the tail light from vibration, even in the most demanding rigid frame applications. This ensures reliable operation and longer bulb life. Kit includes dual filament 12 Volt Brake/Tail Lamp with License Plate Light.The brackets are powder coated gloss black and include stainless steel button head hardware. ALL STEEL BRACKETS ARE MADE IN USA!
This is the Prism version of the "RH-55 Guide Light" that originally came on Panheads and Ironheads. Overall dimensions are 3.375" x 2.5" x 1" thick, 30% smaller than the original. All light assemblies consist of the following:
Injection Molded Prism Supply Lens
Dual brightness 1.85" diameter waterproof LED for running and brake lights
Stainless steel mounting hardware
Prism Supply Co - Box Chopper Tail Light
Box Chopper Tail Light
This is the Prism version of the old style "Chopper Box light." It's equipped with a dual function LED cluster that acts as both a brake light and running light. The size of the Prism version housing is 4-1/4" long X 3/4" wide X 2-1/8" in height while the size of the original style is 4-1/4" long 2" wide and 2" in height. The wires exit through the back of the housing. The housing is made of aluminum which gives you the option for polish, chrome, powdercoat or just leave raw.
All lights come with a two stainless steel 1/4-28 bolts spaced 3.5" apart for mounting.
Prism Supply Co Ripple Tail Light (Weld-On)
Ripple Tail Light (Weld-On)
These tail lights are perfect for that weld-on application. Works great welded to a sissy bar moulded to a frame or welded to a license bracket.
These dual-function 1.25" LEDs act as a brake light and running light. The size of the housing is 1 7/8" diameter x 1" long.
Stainless or mild steel options are available.
Will come with flat and dome lens.
Prism Supply Co Bullet Tail Light
Bullet Tail Light
The Prism Supply take on the classic bullet light. This taillight includes a dual function 1.25" LED that acts as a brake light and running light. The housing is made of aluminum and the size of the housing is 1-3/4" diameter by 2-7/16" long. The wires exit through the bottom of the housing through the bolt.
All lights come with a stainless steel lock washer and a milled 5/16 hex head bolt (hex bolt not pictured) for mounting.
Prism Supply Co 1.25" Speedster Tail Light
1.25" Speedster Tail Light
These dual-function 1.25" LEDs act as a brake light and running light. The size of the housing is 1-1/2" diameter by 1-1/16" long. The wires exit through the bottom of the housing.
All lights come with a stainless steel lock washer 3/8 bolt for mounting and a universal mounting bracket.
