Fenders and Sissy Bars

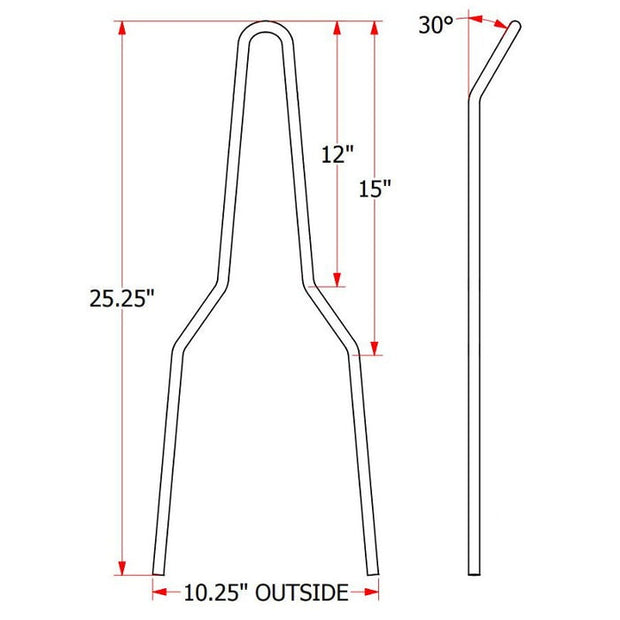

TC Bros-Kickback Sissy Bar DIY Kit

This is exactly what you need for a sissy bar that fits your bike perfectly!

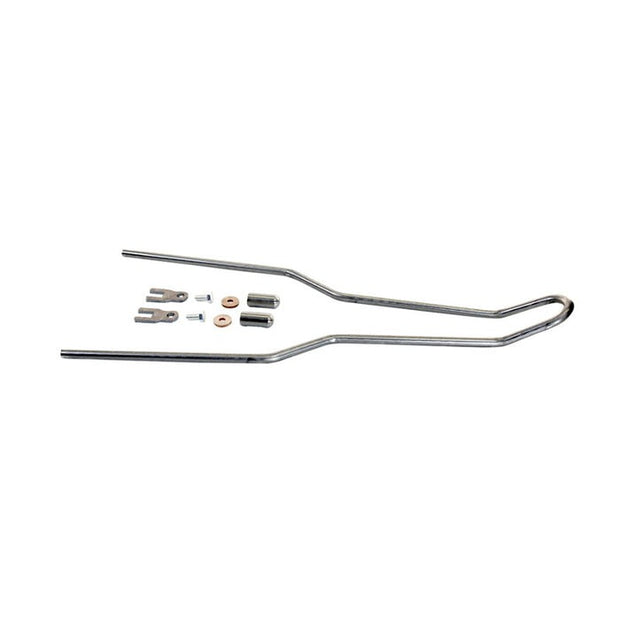

Kit includes a precision CNC bent sissy bar hoop, axle plate mounting tabs, 3/8-16 threaded radius bungs, mounting bolts, and leather washers to protect your paint.

Simply trim the hoop to your desired height and weld the included tabs and bungs to the hoop. The hoop is constructed from premium 1/2" diameter 1018 cold-rolled American steel for high strength and easy welding. The threaded radius bungs allow for mounting bolts to be hidden on the underside of your fender for a professional-looking installation. Universal design is perfect for both flat or round profile rear fenders.

For some extra style, use the TC Bros Mounting Bung Kit

Proudly made in the USA

Weld-On Rear Ribbed Fender Mount

universal fit, weld-on ribbed fender mounting bracket is constructed from a single piece of 1/4" thick American made mild steel for easy welding.

Vintage style curves and contours provide eye appeal while the 5/16" diameter mounting holes make for a simple installation. 1018Mild Steel CNC Machined bungs are provided to weld directly to your ribbed fender.

This fender bracket is most commonly used to mount ribbed fenders to a frame cross member. The straight portion of the bracket is easily trimmed to length to fit your application.

Combine this bracket with a set of our universal fender struts (SKU #104-0008) and you have a fender mounting system that will withstand the most demanding rigid frame applications. Sold individually.

Proudly made in the USA.

5" Raw Flat Fender

5" flat profile fenders are among the highest quality you will find. Unlike others on the market, our fenders are actually designed for motorcycle use. This is NOT another re-labeled trailer fender that doesn't fit the profile of a motorcycle tire properly. These fenders feature a 27" diameter (13.5" radius) that follows motorcycle tires made for both 16" and 18" rear wheels. They are proudly made in the USA from heavy duty 14 gauge steel to survive the abuse that hardtail rigid frame choppers and bobbers can provide. They are undrilled for a universal fit allowing you to cut/drill to your custom application. 6" width works great for up to a 140 series tire.

Tall Kickback DIY Sissy Bar Kit

TC Bros. Tall (36") Kickback DIY Sissy Bar Kit is exactly what you need for a sissy bar that fits your bike perfectly!

Kit includes a precision CNC bent sissy bar hoop, axle plate mounting tabs, 3/8-16 threaded radius bungs, mounting bolts, and leather washers to protect your paint.

Simply trim the hoop to your desired height and weld the included tabs and bungs to the hoop.

The hoop is constructed from sturdy 5/8" diameter 1018 cold rolled American steel for high strength and easy welding. The threaded radius bungs allow for mounting bolts to be hidden on the underside of your fender for a professional-looking installation. Universal design is perfect for both flat or round profile rear fenders.

For some extra style, use the TC Bros Mounting Bung Kit

Proudly made in the USA.

36" overall length.

Weld-On Rear Fender Mount for Bobbers and Choppers

universal fit, weld-on fender mounting bracket is constructed from a single piece of 1/4" thick American made mild steel for easy welding.

Vintage style curves and contours provide eye appeal while the 5/16" diameter mounting holes make for a simple installation. Leather washers are provided to prevent paint damage and provide vibration resistance. This fender bracket is most commonly used to mount flat profile fenders (4.5" minimum width) to a frame cross member. The straight portion of the bracket is easily trimmed to length to fit your application. Although this bracket is designed to best fit flat profile fenders, we have found that it works well to mount TC Bros. SKU #105-0136 rear fender because the center portion of the fender is a very large radius (nearly flat).

Combine this bracket with a set of our universal fender struts (SKU #104-0008) and you have a fender mounting system that will withstand the most demanding rigid frame applications. Sold individually.

Proudly made in the USA.

6.25 Spun Bobber/Chopper Fender

6.25" wide spun steel rear motorcycle fenders are among the highest quality you will find anywhere. Spun from 13GA (.090" thick) premium steel, these are very heavy duty and built to last.

Parallel sidewalls make for easy mounting to sissy bars or fender struts!

27.5" inside diameter fits 16" tires perfectly, and 6.25" inside width accommodates up to a 140 series tire.

Works perfectly with vintage style 16" tire sizes such as 5.00x16, MT90-16, 5.10 x 16, etc. Also looks good on OEM style tires such as 130/90-16, 140/90-16, etc

Pictured on a Shinko Classic 270

REAR FENDER KIT VOLUSIA C50

Please note, our fender kit will not work with the stock seat.

All mounting brackets and struts are gloss black powder coated to match your frame. All hardware is included. Our installation video, located just above the products, will show how easy they are to install. Be sure to click on the upper left hand corner of the video to see the list of videos to choose from. Everything bolts into place with no cutting or welding required. Sorry but our fender struts will not support a passenger.

Our super heavy duty aluminum fender is 1/8″ thick. To top it off we include steel reinforcement straps for all mounting areas. Order either the grey powder coated primer finish, bare aluminum with a clear anodized finish, or gloss black powder coated (additional $20). If you are painting your fender the primed surface is best since it is ready to lightly sand and paint. If you want the aluminum metal look, the bare fender would be the way to go. The anodized finish is very durable, but we don't recommend it for polish or paint.

6" Wide Raw Steel Ribbed Bobber Fender

High quality, one-piece 14ga stamped steel construction for high strength. This fender radius fits great with tall sidewall vintage style 16" rear tires such as the Shinko Super Classic 270 as well as 18" and 19" rear tires. Fender is 6" Wide, 29" from tip to tip, and just under 13" tall overall. The timeless, classic look of these fenders are very similar to Wassell style British fenders produced back in the 1960s, except these are brand new, and thicker material for increased strength!

Universal Bobber/Chopper Fender Strut Kit

Kit includes:

(4) CNC Machined steel bungs with 3/8-16 threaded hole

(2) 12" long 1/2" diameter steel rods.

Everything is made in USA from 1018 mild steel for easy welding.

For some extra style, use the TC Bros Mounting Bung Kit

FENDER LIGHT & SIGNAL KIT

(FENDER NOT INCLUDED, SHOWN FOR REFERENCE ONLY)

This kit includes everything you will need to light the rear of your bike.

Our rear light kit is designed to mount to our license and seat brackets only, it will not mount to stock bikes.

Our tail light has the perfect combination of retro looks, bright LED light and a rugged mount.  We have tried lots of lights and decided to make our own!

It's CNC machined from a solid 3″ (76mm) diameter aluminum billet.  There are 15 super bright red LED lights that act as both tail light and stop light.  The bright white LED light in the bottom lets the cops read your license plate at night and also adds extra light to the back of your bike.  The mount is 12 gauge steel and the license plate mount is thick aluminum which is easy to cut or drill for those international sized plates.  Everything is powder coated gloss black.  You can lightly scuff the light and paint it your own color.  The aluminum wire channel is easy to install and holds your wires under the fender and out of sight.  The wires are 34 inches long and are color coded as per our instructional DVD.

This light wires to your bike directly without the need of resistors or other electronics. Our installation video, located just above the products, will show how easy they are to install. Be sure to click on the upper left hand corner of the video to see the list of videos to choose from.  No welding or cutting required.

Also includes two beautiful black nickel (DOT approved) dual filament bullet lights. These are extremely high quality lights that use 1157 colored regular bulbs (not LED). Load equalizers are NOT needed with these lights. Includes two replacement bulbs as shown. The lights are a little over 2″ in diameter. The smoked lens adds to the totally custom look. They mount to the bottom of our seat kit. All wires, crimpers, shielding and connectors make this a fun and easy install. No soldering is required.

REAR FENDER KIT VULCAN 800 & 400

Please note, our fender kit will not work with the stock seat.

All mounting brackets and struts are gloss black powder coated to match your frame. All hardware is included. Our installation video, located just above the products, will show how easy they are to install. Be sure to click on the upper left hand corner of the video to see the list of videos to choose from. Everything bolts into place with no cutting or welding required. Sorry but our fender struts will not support a passenger.

Our super heavy duty aluminum fender is 1/8″ thick. To top it off we include steel reinforcement straps for all mounting areas. Order either the grey powder coated primer finish, bare aluminum with a clear anodized finish, or gloss black powder coated (additional $20). If you are painting your fender the primed surface is best since it is ready to lightly sand and paint. If you want the aluminum metal look, the bare fender would be the way to go. The anodized finish is very durable, but we don't recommend it for polish or paint.

FENDER LIGHT & SIGNAL KIT

(FENDER NOT INCLUDED, SHOWN FOR REFERENCE ONLY)

This kit includes everything you will need to light the rear of your bike.

Our rear light kit is designed to mount to our license and seat brackets only, it will not mount to stock bikes.

Our tail light has the perfect combination of retro looks, bright LED light and a rugged mount.  We have tried lots of lights and decided to make our own!

It's CNC machined from a solid 3″ (76mm) diameter aluminum billet.  There are 15 super bright red LED lights that act as both tail light and stop light.  The bright white LED light in the bottom lets the cops read your license plate at night and also adds extra light to the back of your bike.  The mount is 12 gauge steel and the license plate mount is thick aluminum which is easy to cut or drill for those international sized plates.  Everything is powder coated gloss black.  You can lightly scuff the light and paint it your own color.  The aluminum wire channel is easy to install and holds your wires under the fender and out of sight.  The wires are 34 inches long and are color coded as per our instructional DVD.

This light wires to your bike directly without the need of resistors or other electronics. Our installation video, located just above the products, will show how easy they are to install. Be sure to click on the upper left hand corner of the video to see the list of videos to choose from.  No welding or cutting required.

Also includes two beautiful black nickel (DOT approved) dual filament bullet lights. These are extremely high quality lights that use 1157 colored regular bulbs (not LED). Load equalizers are NOT needed with these lights. Includes two replacement bulbs as shown. The lights are a little over 2″ in diameter. The smoked lens adds to the totally custom look. They mount to the bottom of our seat kit. All wires, crimpers, shielding and connectors make this a fun and easy install. No soldering is required.

FRONT FENDER KIT VOLUSIA C50

The fender is designed to fit your Suzuki 800 model.

All mounting brackets and struts are gloss black powder coated to match your frame. All hardware is included. Our installation video, located just above the products, will show how easy they are to install. Be sure to click on the upper left hand corner of the video to see the list of videos to choose from. Everything bolts into place with no cutting or welding required.

Our super heavy duty aluminum fender is 1/8″ thick. To top it off we include steel reinforcement straps for all mounting areas. Order either the grey powder coated primer finish, bare aluminum with a clear anodized finish, or gloss black powder coated (additional $20). If you are painting your fender the primed surface is best since it is ready to lightly sand and paint. If you want the aluminum metal look, the bare fender would be the way to go. The anodized finish is very durable, but we don't recommend it for polish or paint.

Our installation video, located just above the products, will show how easy they are to install. Be sure to click on the upper left hand corner of the video to see the list of videos to choose from. It mounts in minutes.

Tall DIY Sissy Bar Kit

TC Bros. Tall (36") DIY Sissy Bar Kit is exactly what you need for a sissy bar that fits your bike perfectly!

Kit includes a precision CNC bent sissy bar hoop, axle plate mounting tabs, 3/8-16 threaded radius bungs, mounting bolts, and leather washers to protect your paint.

Simply trim the hoop to your desired height and weld the included tabs and bungs to the hoop.

The hoop is constructed from sturdy 5/8" diameter 1018 cold rolled American steel for high strength and easy welding. The threaded radius bungs allow for mounting bolts to be hidden on the underside of your fender for a professional-looking installation. Universal design is perfect for both flat or round profile rear fenders.

For some extra style, use the TC Bros Mounting Bung Kit

Proudly made in the USA.

36" overall length.

7.5" Wide Raw Steel Ribbed Bobber Fender

High quality, one piece 14ga stamped steel construction for high strength. Fender is 7.5" Wide, 29" from tip to tip, and just under 13" tall overall. The timeless, classic look of these fenders are very similar to Wassell style British fenders produced back in the 1960's, except these are brand new, and thicker material for increased strength!

Anteris Bolt-On Rear Fender and Sissy Bar Kit - Honda Shadow VT600 VLX

Our Anteris Complete Fender and Sissy bar kit for Honda Shadows includes everything you will need to mount up one of our curved fenders and a sissy bar to your VLX600! ZERO WELDING REQUIRED!  Includes curved fender for 150-180 tires, Straight up Sissy Bar, Pressio Bolt-On Fender Mount Kit and all hardware necessary to mount everything to your bike  You can carry a passenger on the fender, or you can strap a sleeping bag and a tent to it! This Kit will work with a mono strut setup or the factory mono shock, for either setup you will need to remove the fender subframe and cut off the rear fender support horns!  This is Honda Shadow bobber kit is a huge value add to your bike!

Sissy bar is approximately 15" tall from the top of the fender to top of the sissy bar.

The only thing you will need is your muscles, a drill, and a drill bit! We made this kit so simple that you don't even have to do any math or take your shoes off to count! All hardware is 3/8-16" so only one drill bit is necessary. You will need to drill holes in the fender to mount the sissy bar and the fender mount, and to drill holes in your axle plates for the lower sissy bar bolts. You will need to remove the chain guard as well. Seriously, this is literally the easiest kit to use ever!

This Complete Kit includes the following parts -

• Curved Fender for 150-180 size tires - approx 21" long
• Bolt on Straight up Sissy Bar
• Bolt on Pressio Fender Mount Kit.
• All hardware necessary to mount everything to your bike is included.

Optional Upgrades- This kit works perfectly with our Mono Struts and Mono Strut E-Tanks

Yes, you can carry a passenger on this fender and sissy bar.

These are cake to install. You can attach them to your axle plates one of two ways:

TJ's Method - Locate the 3rd & 4th from the rear notch on your axle plate on each side and center punch each plate about 1/2" above the notches. You want to make sure the lower bung doesn't hit the adjustment notches and it doesn't hit the curved portion of the axle plate.
Drill a 5/16" hole and then tap it with a 3/8"-16 tap.

OR

Alternate Method - Drill a 3/8" hole and use a nylock nut on the bolt on the backside of the axle plate. Lay a length of chain over the center line of the tire, tape it down and lay the fender on this, it will give you a perfect fender height!
Move your sissy bar to the angle you want and mark the location of the holes on the fender, needed for the bolts to attach to the upper fender supports. Pull the fender off and drill the holes.
At the rear of the fender you will want to drill slightly oversized 3/8" holes to attach the Sissy Bar fender supports.

Curved Bobber Fender - Honda Shadow - Fits Rear Tires 160-170

Our Curved Bobber Fender for Honda Shadow stock tires is great for getting that bobber, or chopper rear end look for your Honda Shadow! Handmade of 13 ga steel, this is a fender built to last! These hand made fenders fit a 160-170 tire perfectly, and they will fit most 180 tires, depending on the brands tire profile, the fit may be more snug than others.

This TJ Brutal Customs bobber fender does not include any hardware.

These rear fenders offer a closer profile than the flat top fenders! They require some fabrication to mount as they do not have any holes pre-drilled, so break out the welder and hood!
These are approx. 7" wide and 21" long and when mounted to a stock frame they extend about 4" past 12 o'clock on your wheel.
They fit the rear wheel like a glove and are strong enough to carry a passenger, a sleeping bag and tent, or a drill press! Yes, we've done that!

The easiest way to set these up on a Honda Shadow VT600 that has been hard tailed:  Lay a length of bike chain down the center of your tire to set fender height. You can use angle brackets welded to the swing arm or our Pressio fender mounting kit. Drill holes in fender to bolt fender to angle brackets or pressio kit. Drill 5/16' hole in axle plate. Tap with 3/8-16" tap. Bullet bungs get welded to top of struts and countersunk bungs get welded to bottom of the struts (cut struts to desired length). Cap head bolt goes into countersunk bung into axle plate and bullet bung gets bolted to fender from inside fender.

For pre-03 750 models you can use the L brackets to mount to the frame and any other supports would need to be of your own design.

Pressio Bolt On Fender Mount for Curved Fender - Honda Shadow VT600 VLX

The Pressio Bolt-On Fender Mount for our Curved Fenders the Honda Shadow VT600 VLX is the hassle-free answer for those who don't have welding access and want to mount one of our curved fenders! The kit includes everything you need to install the forward fender mount for our Curved Bobber Fenders! A bolt and nut to replace the stock mono-shock bolt, two bolts and nuts to mount the fender, spacers for either side of the mono shock support and leather washers to protect your fender paint from the bracket.

The Pressio Bolt-On Fender Mount for our curved fenders takes all the trouble and guess work out of the forward mounting point for mounting a fender to your Honda Shadow, using the included bolts and nuts all you need to do is mark the location of the brackets on your fender, drill the holes in the fender and bolt everything together.

This kit fits our curved fenders. It may fit other fenders but we cannot guarantee a fit.  The Pressio Bolt-On Fender Mount will only fit the VT600 VLX from 88-07

The bolt on fender mount uses the rear mounting bolt of your mono shock or mono strut to hold the fender in place and the kit includes a bolt to replace the stock mono-shock bolt. This is only the forward mounting kit. You will need to support the rear of the fender with either a sissy bar or strut kit.

This kit works perfectly with our E-tanks, Curved Fenders, Mono Struts, and Bolt on Sissy Bars!

Sportster 2004-20 Kickback Sissy Bar Black

TC Bros. Bolt-on Sissy Bar makes securing your gear fast and simple. Classic good looks and durable one-piece construction will provide years of hassle-free service.  Direct bolt-on fitment for all 04-20 Harley Davidson Sportster models.

Unique Features

• The rigid design is constructed from 5/8" diameter solid steel.
• Precision CNC bent for perfect fitment and symmetry.
• TIG-welded for strength and appearance.
• Durable triple chrome-plated finish.
• Integrated "bungee hook" holes for use when securing your gear.
• Chrome hardware is included for easy installation.

Fitment Notes:

• Direct bolt-on kit to Harley Davidson Sportster Models 2004-2020.
• Works great with stock turn signals.
• Will fit with or without stock chrome frame covers on most models.
• Overall height: 20.5"
