mo.blaze disc by motogadget – a turn signal for handlebar end installation in a trend-setting design.
The mo.blaze disc is the latest generation of turn signal lights. The characteristic feature of the LED turn signal is the transparent light-emitting disc on a compact aluminum base providing the harmonious finish of the handlebar end.
This is already the third generation of our turn signals using the motogadget TranzLight-Technology® (TLT, patent pending). This progressive approach to development is not limited to the miniaturization of turn signal casings. Furthermore, it creates new lighting concepts directly through a crystal-like plastic body. Only the precision of CAD calculations and state-of-the-art manufacturing processes allow this new design and its performance opportunities.
The luminous flux required for the TranzLight technology is generated by the intensiLED® procedure developed by motogadget. It consists of three important pillars:
Specifically selected, high output LED with maximum efficiency and 7W total output and a service life of more than 50,000 hours.
IC controlled constant power source with 330 kHz pulses.
Special collimator optics precisely bundles the emission light from the LED into the plastic body.
The subtle aluminum casing is used for the secure mount of the plastic body only and includes the electronic control system and high-end LEDs. Traditionally, the casing is machined using CNC technology, available with an anodized black or mirror polish surface, and furnished with an elegant finish of laser inscriptions.
The turn signal for handlebar end installation has a very low construction height and, due to the transparent disc, the m.blaze shows up with a very neutral and subtle look. That's why the m.blaze is the perfect match for many styles and all types of motorbikes.
Like any other conventional LED turn signal, the turn signal kit can be operated with load resistors or any of our load-independent flasher relays (m.flash, m.wave, m.stop, m.relais+).
The m.blaze disc has an E mark and front turn signal approval.
Always make sure to order a complete set consisting of the left and right-side turn signal assembly
Advantages
Completely unique, discrete design and functionality
Barely recognizable on handlebar when OFF
Extremely bright light to the front side, well-recognizable light output to the rear side
State-of-the-art, high-performance LED technology called IntensiLED
Electronic voltage conditioning and secure protection circuits
No need for turn signal indicator lights
Quite a harmonious finish for the handlebar end - especially when equipped with m-grip or other billet grips.
Specifications and features
Diameter
35 mm
Overall length
68 mm
Partial length outside handlebar
20 mm
Partial length inside handlebar
48 mm
Cable length
ca. 100 cm
Weight
approx. 40 g
Mounting
Delivered with rubber clamping parts for steel and aluminum handlebars (22 mm and 1 in.) with 14 mm to 21 mm I.D.
Power consumption
approx. 7 Watt
Motogadget mo.blaze disc dark
Regular price
$174.95
mo.blaze disc dark
Discover the dark side - a tinted look makes the mo.blaze disc disappear on the handlebars and emits light from all sides. An innovative top product, handmade in Berlin. The design and high-quality appearance make the mo.blaze disc a highly regarded design classic.
For use as a pair, please order one left and one right turn signal.
The mo.blaze disc is the flashing signal light of the latest generation. The characteristic feature of the LED turn signal is the transparent illuminated disc on a compact aluminum base, which harmoniously closes with the handlebar end grip.
This is motogadget's third turn signal, which uses the new TranzLight technology (TLT, patent pending). This progressive development approach is not limited to simple miniaturization of turn signal housings, but designs the light directly via a crystal-like plastic body. Only precise optical CAD calculations and state-of-the-art manufacturing processes make this novel design and its function possible.
The light flux required for the TranzLight principle is generated by the motogadget's intensiLED® process and consists of three important components three important components:
Selected high-performance LEDs with maximum efficiency and a total output of 9W with a service life of more than 50,000 hours
An IC-controlled constant current regulation clocked at 330kHz
A special collimator optic that couples the light from the LED precisely into the plastic body
The discreet aluminum housing is only used for the stable mounting of the glass body and the integration of control electronics and high-end LEDs. Of course, the housing is CNC-manufactured, black anodized or highly polished and finely inscribed by laser.
The handlebar end turn signal builds very flat and appears through the transparent disc neutral and inconspicuous. Thus, it fits many styles and the most diverse motorcycles. The flasher can be operated like any other LED flasher with load resistors or all our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+).
The handlebar end blinker mo.blaze disc presented here has an E-mark and is ECE-approved as a front blinker.
Technical Data
Diameter: 35 mm
Total length: 68 mm (visible 20mm / in the handlebar 48mm)
Voltage: 12V
Power: 9W
Waterproof - degree of protection IP69
Vibration resistant
3 x high-power LEDs (2 to the front, 1 to the rear)
Service life: 50000h
Cable length: approx. 1m
Weight approx. 50g
Scope of Delivery
1 x handlebar end blinker mo.blaze disc left or right
Clamp for steel and aluminum handlebars (22 mm and 1 inch handlebars) with an inner diameter of 14 mm to 21 mm
Connection cable with 1m length
2 x 3M Scotch Lok connectors
QR code for mounting and operating instructions
For use as a pair, please order one left and one right turn signal.
Motogadget mo.blaze tens3
Regular price
$179.95
mo.blaze tens3
The mo.blaze tens3 from motogadget is the smallest 3in1 indicator in the world.It is a turn signal, taillight and brake light in one light element at the same time.
Its tiny dimensions and the reduced design make it almost disappear on the vehicle.As soon as it lights up, thanks to the IntensiLED® Technology, it is extremely bright and definitely cannot be overlooked.
At the same time, the additional side beam angle ensures the best visibility and safety.
The add-on indicator has ECE approval as a rear direction indicator/taillight / brake light.The aluminum housing is CNC milled and available in black anodized or high-gloss polished versions.
The flasher can be operated like any common LED flasher with load resistors or our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay +).To match the mo.blaze tens3, we offer the mo.blaze tens4 as an indicator with a position light for the front.
benefits
extremely small aluminum housing
ECE approval, no registration or similar necessary
increased visibility and safety thanks to an additional side beam angle
maximum luminosity thanks to the latest high-performance LED technology (IntensiLED®)
Electronic voltage conditioning through 330kHz clocked, IC-controlled constant current source and safe protection electronics
the fastening thread is standard M8.Therefore no mounting adapter or special heat sink nuts are necessary
scope of delivery
Single 3in1 mo.blaze tens3 turn signal with M8 thread
Nut M8
4 push-lock cable connectors
installation Guide
Please order two 3in1 indicators for use as a rear pair.
Specifications and features
Total length with thread
29 mm
Length without attachment thread
11 mm
Largest diameter
11 mm
Cable length
approx. 110 cm
Weight with cable
approx. 20 g
Attachment
M8 threaded bolt
Power consumption
approx. 1/2/3 watt
Motogadget mo.blaze tens2
Regular price
$99.95
mo.blaze tens2
The mo.blaze tens2 from motogadget is the smallest rear light/brake light combination in the world.
Its tiny dimensions and the reduced design make it almost disappear on the vehicle.As soon as it lights up, thanks to the IntensiLED® technology, it is extremely bright and definitely cannot be overlooked.
At the same time, the additional side beam angle ensures the best visibility and safety.
The taillight/brake light combination has ECE approval as a rear taillight and brake light.The aluminum housing is CNC milled and available in black anodized or high-gloss polished versions.
The rear light/brake light combination can be operated with 12 V like any conventional LED light.
benefits
extremely small aluminum housing
ECE approval, no registration or similar necessary
increased visibility and safety thanks to an additional side beam angle
maximum luminosity thanks to the latest high-performance LED technology (IntensiLED®)
Electronic voltage conditioning through 330kHz, IC controlled constant current source and safe protection electronics
the fastening thread is standard M8.Therefore no mounting adapter or special heat sink nuts are necessary
scope of delivery
Single rear light/brake light combination mo.blaze tens2 with M8 thread
Nut M8
3 push-lock cable connectors
installation Guide
For use as a pair (only for the rear) please order two mo.blaze tens2.
Specifications and features
Total length with thread
29 mm
Length without attachment thread
11 mm
Largest diameter
11 mm
Cable length
approx. 110 cm
Weight with cable
approx. 20 g
Attachment
M8 threaded bolt
Power consumption
approx. 1/1 watt
Highsider Protron Run, Brake, Turn Signals
Regular price
$235.95
Protron Run, Brake, Turn Signals
The Highsider Proton Two Turn Signals are packed with run, turn, and brake functions. Smoked lens. Mounting is made easy with the built-in 8mm mounting stud. Small, smaller, HIGHSIDER PROTON –
With a Highsider Proton turn signal, the lighting on the motorcycle can virtually disappear visually. This indicator is only noticeable when it really has to be. The trend towards ever smaller lighting elements makes it possible to give the bike a cool and clean look E-approved. For rear use.
Dimensions: A Diameter: .43″ (11mm) B Width: .47″ (12mm) Depth: .63″ (16mm) Thread: M8 x 18 mm Weight: .044 lb (20 g)
Connections: Yellow = taillight (+) Red = brake light (+) Brown = turn signal (+) Black = ground (-)
Scope of delivery: 1 pair.
Motogadget m.blaze edge
Regular price
$70.00
m.blaze edge
The m.blaze edge by motogadget is a 3in1 bolt-on turn signal in a visionary design. It's a turn signal, rear light and brake light in one housing.
Using the motogadget TranzLight® Technology the light of the power LEDs is precisely controlled and emitted. The exclusively developed IntensiLED® System provides the highest and constant light intensity.
The metal housing and the PMMA lens are designed with CAD software by free-formed surfaces.
The cutting-edge design is oriented to modern automotive luminaires and establishes new dimensions in the motorcycle market. The m.blaze edge is available plated in Chrome and Dark-Chrome.
The m.blaze edge has an E-mark as a rear turn signal, as a rear light, and a brake light. The turn signal can be installed like any other LED turn signal with power resistors or all of our load-independent flasher relays (m.flash, m.wave, m.stop, m.relay+).
Please order always a right and a left turn signal when used as a pair.
Parts delivered
A 3in1 turn signal for the rear, left, or right side
M8 thread and nut
4 x 65 cm length of cable
4 cable end clamp
Installation instructions
Specifications and features
Total length w/ thread
92 mm
Length w/o mounting thread
54 mm
Height
20 mm
Weight
55 gr

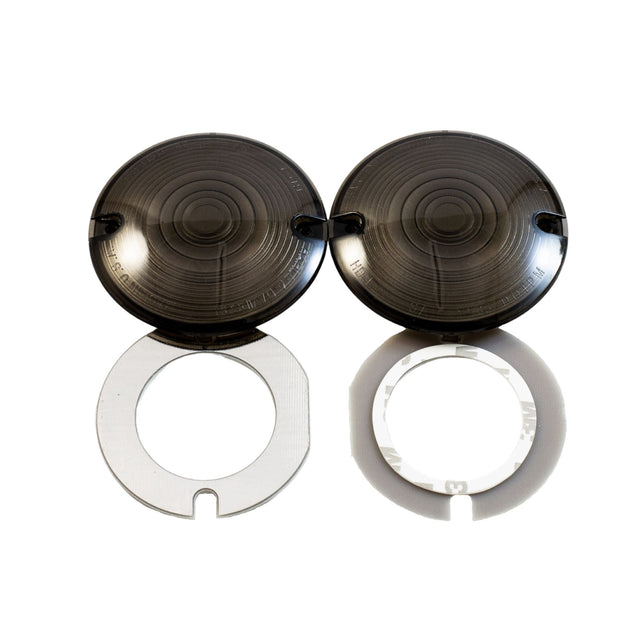

OG Smoked Bagger Turn signals lens kit
Regular price
$24.95
Our OG Smoked Bagger Turn signals lens kit is made to be used with OEM larger bagger style turn signals found on most H-Ds Electra Glide, Road King Heritage & Softail Heritage. It allows you to run our OG X-series LED Turn signals.

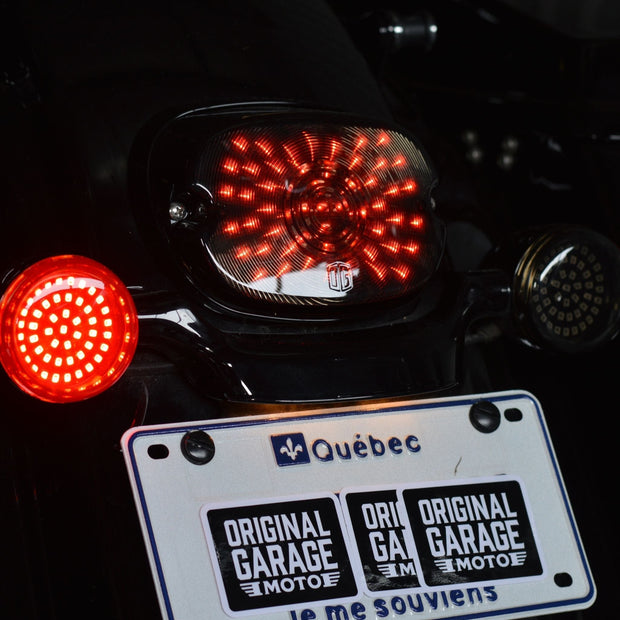

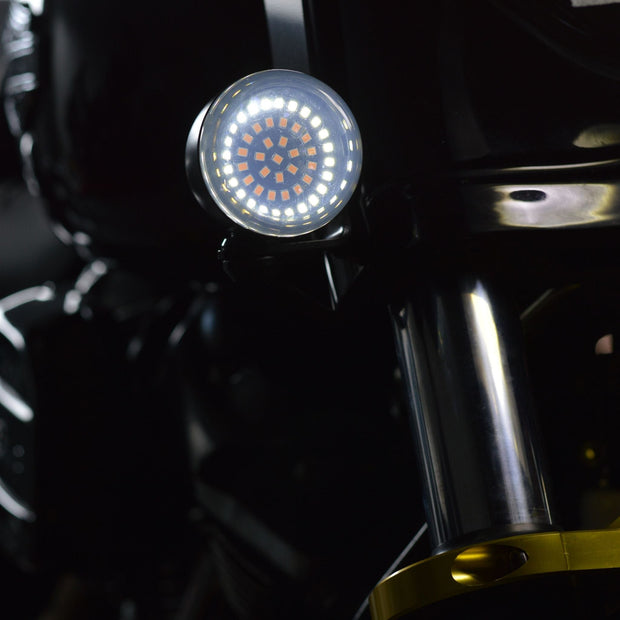

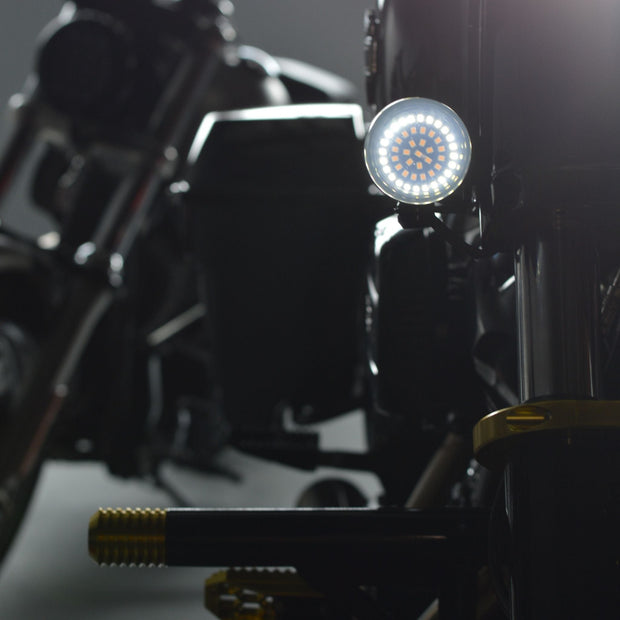

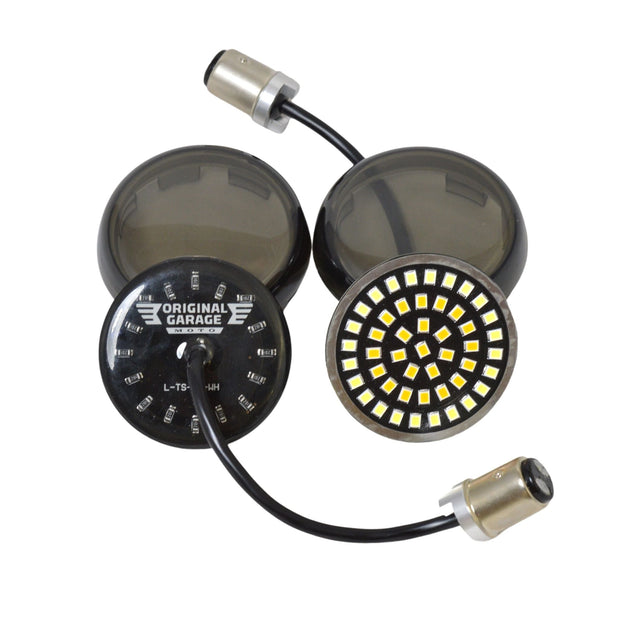

OG X-series LED Turn signals
Regular price
$119.95
50% brighter than stock lighting, the OG X-series LED Turn signals are ready to use right out of the box. These LED blinkers are available for most Harley-Davidson models and feature integrated running, brake, and turn signal lights. A one-year replacement guarantee is included.
Front 1157 - White outer ring running light & amber center turn signal.
Rear 1157 - Red running light & turn signal. Intense red brake light.
Rear 1156 - Red signal light only.
Features
LED Power: 8.5W
48 SMD LED Chip
Smoked lens included
Waterproof - Fully sealed
Plug and play fit
Sold in pair
Fitment
Fits all Harley-Davidson models with bullet style signals
Will not fit 2025-Up Softail Models
Most HD models between 1997-2011 may require a load equalizer
H-D models with tail lights typically have 1157 front signals and 1156 rear signals
H-D models without tail lights typically have 1157 on both front and rear turn signals
European H-Ds typically have 1156both front and rear signals
With a HIGHSIDER PROTON MODULE for laminating or gluing in, the turn signal component on the motorcycle can virtually disappear optically. This indicator is only noticeable when it really has to be, for turning or overtaking intentions. The trend towards ever smaller lighting elements makes it possible to give the bike a cool and clean look. Put an end to the oversized torchlight systems from the times of our ancestors. The next level down has been reached and opens up completely new design options on the motorcycle.
In the right direction – with the innovative turn signal series from HIGHSIDER. Don’t just show where you’re going, show who you are. This is trend-setting design at its best.
Dimensions: A Diameter: 11 mm B Width (Depth): 13 mm Weight: 4g
Connections: Yellow = Indicator (+) Black = Ground (-)
Scope of delivery: 1 pair.
Highsider Apollo LED Turn Signals - Smoke
Regular price
$127.95
Highsider Apollo LED Turn Signals - Smoke
The Highsider Apollo Turn Signal Modules are perfect for custom mounting or molding. The Apollo modules feature a black aluminum ring with smoked lenses and an 8 mm mounting stud. With this innovative lighting technology, two very bright amber SMD LEDs are installed in the center, enabling an extremely small design.
The outer ring, on the other hand, consists of the new COB technology (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, high light output can be achieved with currently the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs. E-approved. For use as front or rear turn signal. Sold as a pair.
Details:
2 very bright amber SMD LEDs are installed in the center
The outer ring consists of the new COB technology (Chip on Board)
The unit can be installed flat without the aluminum ring, leaving only the lens visible. This requires drilling a 20 mm hole
Alternatively, the unit can be mounted with the aluminum ring on a retaining plate
For use as front or rear turn signal
E-approved
Dimensions:
Depth: 0.5" (13 mm)
Housing Depth: 0.35" (9 mm)
Lens Diameter: 0.87" (22 mm)
Housing Diameter: 0.79" (20 mm)
Threaded Bolt: M8 x 0.47" (12 mm)
Kodlin Elypse LED 2-1 Universal Turn Signals
Regular price
$327.95
Sale price
$299.95
Elypse LED 2-1 Universal Turn Signals
Features and Benefits:
2-1, White Run Light and Full Contrast Amber Turn Signal. Super small, amazingly bright with smoked lenses
Engineered in Germany with SMD-LED technology
The housing is CNC machined from billet aluminum and available in black or chrome finish
Some applications may require the use of a load equalizer
Sold in pairs!
Fitment:
Custom-fit on hydraulics clutch controls models.
Custom-fit for most 12 Volt models
Motogadget mo.blaze tens4
Regular price
$109.95
mo.blaze tens4
The mo.blaze tens4 from motogadget is the smallest blinker with position light in the world.
Its tiny dimensions and the reduced design make it almost disappear on the vehicle.As soon as it lights up, thanks to the IntensiLED® Technology, it is extremely bright and definitely cannot be overlooked.
At the same time, the additional side beam angle ensures the best visibility and safety.
The add-on blinker with position light has ECE approval as a front direction indicator.The aluminum housing is CNC milled and available in black anodized or high-gloss polished versions.
The flasher can be operated like any common LED flasher with load resistors or all of our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay +).To match the mo.blaze tens4, we offer the mo.blaze tens3 as a 3in1 turn signal for the rear.
benefits
extremely small aluminum housing
ECE approval, no registration or similar necessary
increased visibility and safety thanks to an additional side beam angle
maximum luminosity thanks to the latest high-performance LED technology (IntensiLED®)
Electronic voltage conditioning through 330kHz clocked, IC-controlled constant current source and safe protection electronics
the fastening thread is standard M8.Therefore no mounting adapter or special heat sink nuts are necessary
scope of delivery
Single add-on blinker mo.blaze tens4 with thread M8
Nut M8
3 push-lock cable connectors
installation Guide
For use as a pair, please order two turn signals with a position light for the front.
