Motogadget mo.blaze disc dark

The mo.blaze pin from motogadget – setting new benchmarks for bolt-on turn signals with Power LED technology.

Its tiny dimensions and minimal design make it almost disappear from the vehicle. Due to the IntensiLED® Technology, the emitted light is extremely bright when switched ON and definitely can no longer be overseen. Additionally, the greatest visibility and safety will be ensured by the patented TranzLight® Technology (TLT) with a wide beam angle.

The bolt-on turn signal is ECE approved as a front and rear direction indicator. The aluminum casing is CNC machined and available with an anodized black or mirror polish surface.

Like any other typical LED turn signal, the motogadget turn signal can be operated with load resistors or any of our load-independent flasher relays (m.flash, m.wave, m.stop, m.relay+).

Please order two turn signals for a pair and four turn signals for front and rear use

• Absolute unique, new design and principle of operation (light control by TranzLight® Technology)
• extremely delicate appearance due to the transparent glass body and very small aluminum base
• highest luminosity, achieved by state-of-the-art high output LED technology (IntensiLED®)
• electronic voltage conditioning by IC-controlled constant power source with 330kHz pulses and safe protection electronics
• extremely bright light in radiation direction, highly visible light in nearly all directions

• 1x m.blaze pin turn signal w/ M8 thread
• M8 nut
• Approx. 100 cm connector cable)
• Installation instructions

ATTENTION! These are sold in a pair (left and right).

The mo.blaze adapter Triumph enables the installation of our turn signals with M8 thread, especially the mo.blaze pin, on the original turn signal mounts of all water-cooled Triumph Twins from 2016.

The shape of the adapter fits exactly to the original mount of Triumph motorcycles and will fasten with a stainless steel screw. The indicators are simply pushed into the bore of the adapter with the threaded piece and fixed with a grub screw. The adapters are CNC-milled from aluminum and black anodized. They fit both front and back.

Two adapters (one pair, left and right) for indicators with M8 thread, 2 Allen screws VA M6 x 10 mm, 2 Allen screws VA M6 x 12 mm

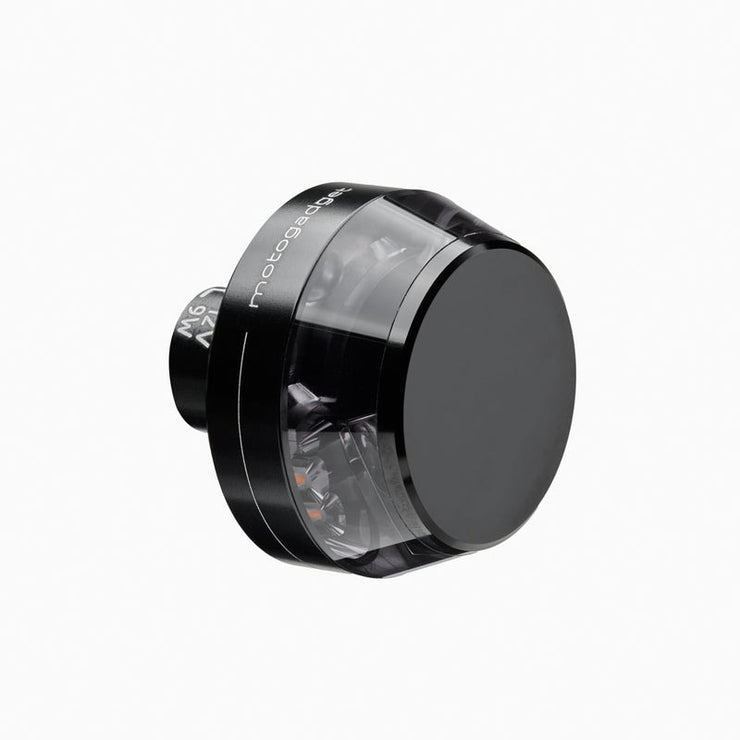

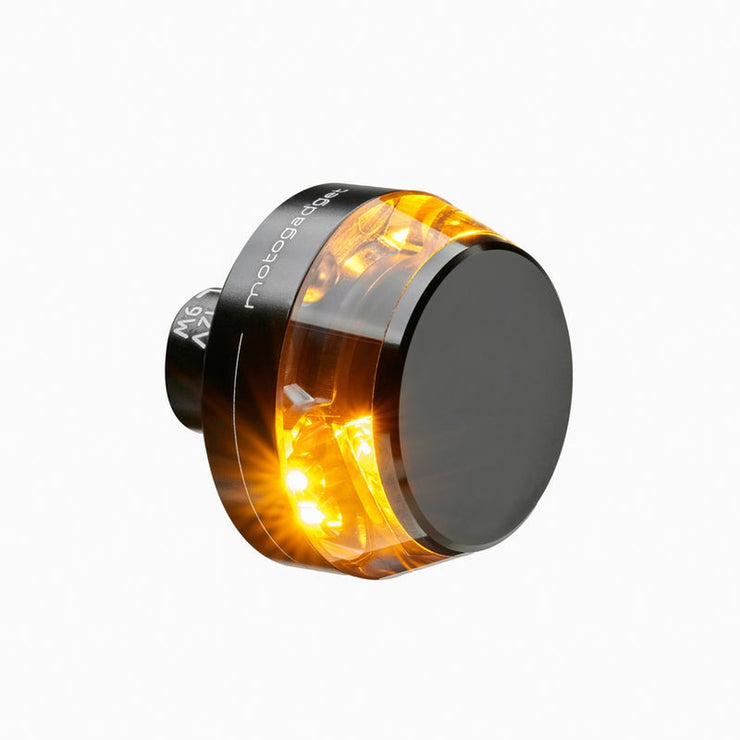

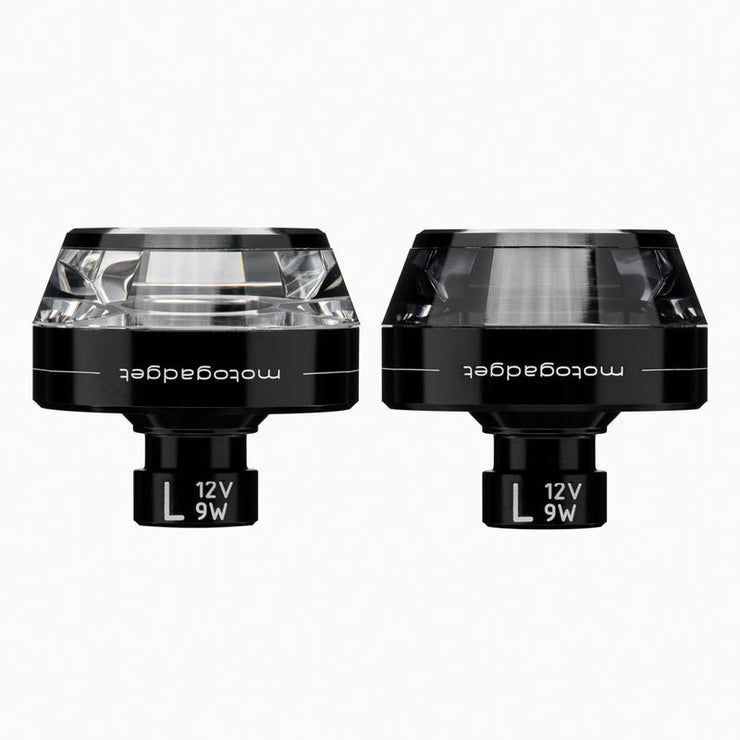

mo.blaze disc by motogadget – a turn signal for handlebar end installation in a trend-setting design.

The mo.blaze disc is the latest generation of turn signal lights. The characteristic feature of the LED turn signal is the transparent light-emitting disc on a compact aluminum base providing the harmonious finish of the handlebar end.

This is already the third generation of our turn signals using the motogadget TranzLight-Technology® (TLT, patent pending). This progressive approach to development is not limited to the miniaturization of turn signal casings. Furthermore, it creates new lighting concepts directly through a crystal-like plastic body. Only the precision of CAD calculations and state-of-the-art manufacturing processes allow this new design and its performance opportunities.

The luminous flux required for the TranzLight technology is generated by the intensiLED® procedure developed by motogadget. It consists of three important pillars:

• Specifically selected, high output LED with maximum efficiency and 7W total output and a service life of more than 50,000 hours.
• IC controlled constant power source with 330 kHz pulses.
• Special collimator optics precisely bundles the emission light from the LED into the plastic body.

The subtle aluminum casing is used for the secure mount of the plastic body only and includes the electronic control system and high-end LEDs. Traditionally, the casing is machined using CNC technology, available with an anodized black or mirror polish surface, and furnished with an elegant finish of laser inscriptions.

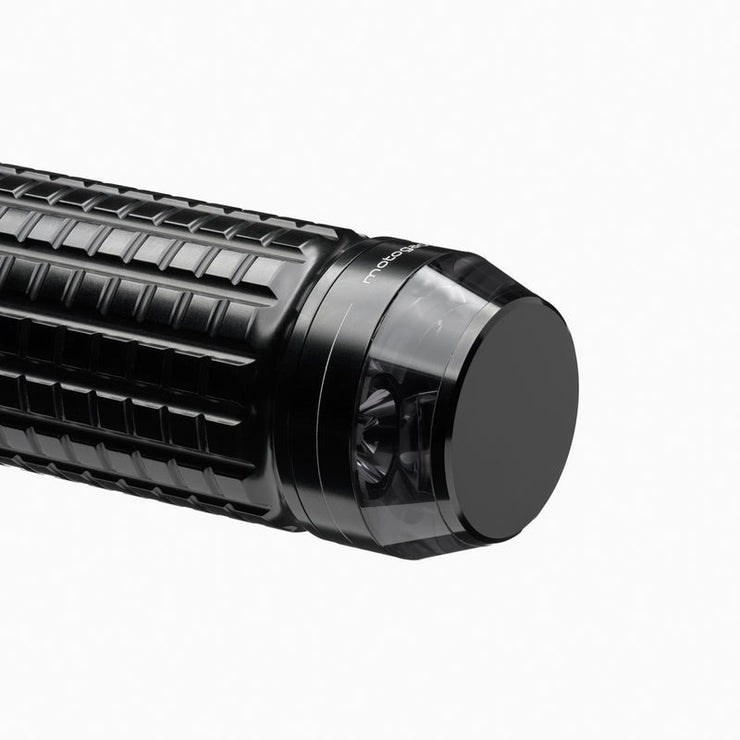

The turn signal for handlebar end installation has a very low construction height and, due to the transparent disc, the m.blaze shows up with a very neutral and subtle look. That's why the m.blaze is the perfect match for many styles and all types of motorbikes.

Like any other conventional LED turn signal, the turn signal kit can be operated with load resistors or any of our load-independent flasher relays (m.flash, m.wave, m.stop, m.relais+).

The m.blaze disc has an E mark and front turn signal approval.

Always make sure to order a complete set consisting of the left and right-side turn signal assembly

• Completely unique, discrete design and functionality
• Barely recognizable on handlebar when OFF
• Extremely bright light to the front side, well-recognizable light output to the rear side
• State-of-the-art, high-performance LED technology called IntensiLED
• Electronic voltage conditioning and secure protection circuits
• No need for turn signal indicator lights
• Quite a harmonious finish for the handlebar end - especially when equipped with m-grip or other billet grips.

The mo.blaze tens1 from motogadget is the smallest add-on blinker in the world.

Its tiny dimensions and the reduced design make it almost disappear on the vehicle. As soon as it lights up, thanks to the IntensiLED® Technology, it is extremely bright and definitely cannot be overlooked.

At the same time, the additional side beam angle ensures the best visibility and safety.

The add-on indicator has ECE approval as a front and rear direction indicator. The aluminum housing is CNC milled and available in black anodized or high-gloss polished versions.

The flasher can be operated like any common LED flasher with load resistors or all of our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay +).

• extremely small aluminum housing
• ECE approval, no registration or similar necessary
• increased visibility and safety thanks to an additional side beam angle
• maximum luminosity thanks to the latest high-performance LED technology (IntensiLED®)
• Electronic voltage conditioning through 330kHz clocked, IC-controlled constant current source and safe protection electronics
• the fastening thread is standard M8. Therefore no mounting adapter or special heat sink nuts are necessary

• Single add-on blinker mo.blaze tens1 with thread M8
• Nut M8
• 2 push-lock cable connectors
• installation Guide

For use as a pair, please order two indicators and four indicators for the front and rear.
