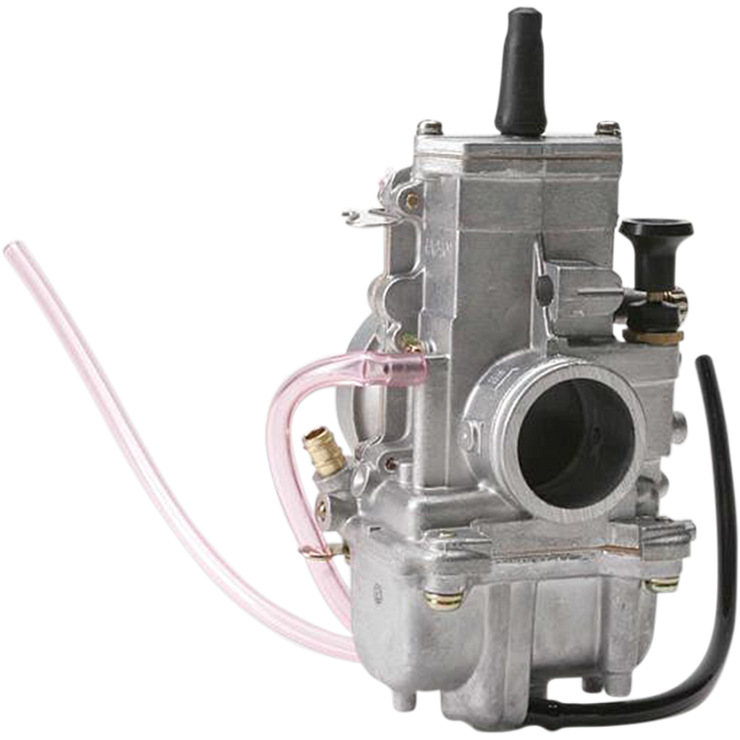

Mikuni TM Flat Valve Carbs (Smooth Bore)

Mikuni VM34mm Carb Kit

These carbs are specifically designed and tuned for Yamaha XS650 motorcycles. These carbs have the proper slide, needle, needle jet required for your XS650 application. The carbs will come pre-jetted for immediate bolt on installation. We include several different main and pilot jets for you to fine tune your carburetors to your application (depending on what performance upgrades you have done such as air filters, exhaust, cam, big bore kit).

Beware of cheaper kits on ebay and other sites that simply take cheaper 2 Stroke snowmobile carbs and try to jet them by choking down the main jet.You will never be able to tune the carburetor properly if you do not install the correct slide, needle, and needle jet for four stroke (XS650) applications. We have taken the time to test these carbs on several of our personal bikes to figure out the correct internal parts to make them perform the best for your XS650.

Also included with this kit is a throttle cable that works with your stock throttle housing on your 1976-1984 XS650 (will also work with TC Bros. 7/8 Throttle Assembly)

These are the proper right and left handed versions. One of each so the idle speed adjusting screws are on the outside of each carb for easy adjustment.

Although these will fit any 1970-1983 XS650 engine with 1980-83 style rubber manifolds installed, we highly recommend the TC Bros XS650 Billet Aluminum Intake Manifold to complete your installation of these carbs. Your stock rubber intakes are not designed to support your carbs without your stock airboxes installed causing them to crack over time. Our aluminum intakes are much stronger and will not crack. Please note that 1970-79 models came with 38mm manifolds from the factory and will require replacement with 34mm manifolds.

WILL NOT WORK WITH STOCK AIR BOXES

xs650 Billet Aluminum Intake Manifolods

XS650 Billet Aluminum Intake Manifolds allow fitment of aftermarket 34-36mm Mikuni VM Roundslide carburetors to 1970-1984 Yamaha XS650 and TX650 models.

Get rid of your cracked and leaking rubber intake manifolds and replace them with our super trick CNC machined billet aluminum racing intakes. These are very sturdy and improve flow to your motor. They are perfect when installing aftermarket carbs. Your stock rubber intakes are not designed to support the weight your carbs without your stock airboxes installed, causing them to crack over time. Our aluminum intakes are much stronger and will not crack.

Kit includes stainless steel hoseclamps that will never rust.

These will fit aftermarket 34-36mm Mikuni VM Roundslide Carbs ONLY. Will not fit stock 34mm CV or BS, stock 38mm, or Mikuni 38mm VM Roundslide Carbs.

Sold as a pair.

Made In USA.

Standard VM Carb

• Round slide configuration offers great flow characteristics
• Use genuine Mikuni jets and parts for best results
• Choke actuated by cable; cable not included
• Clamp type mounting
• Made in Japan

32mm

• Main Jet 280
• Pilot Jet 35
• Needle Jet (159) Q-2
• Jet Needle 6DH4
• Throttle Valve Cutaway 2.5
• Choke Type: Cable

34mm

• Main Jet 330
• Pilot Jet 36
• Needle Jet (159) Q-0
• Jet Needle 6DH3
• Throttle Valve Cutaway 2.5
• Air Jet 0.5
• Choke Type: Cable

38mm

• Main Jet 360
• Pilot Jet 40
• Needle Jet (166) Q-0
• Jet Needle 6DH3
• Throttle Valve Cutway 2.5
• Choke Type: Cable

Super E Carburetor

• Super E has a 1-7/8" throat at the butterfly and a 1-9/16" venturi and is recommended for use on Big Twin or Sportster engines up to 100-cubic-inch
• If there is a doubt as to which carburetor to use, we suggest the 1-7/8" Super E
• Each carb kit includes an S&S Super E gas carburetor
• S&S Super E carburetors require the use of a two-cable, pull open/pull close throttle assembly
