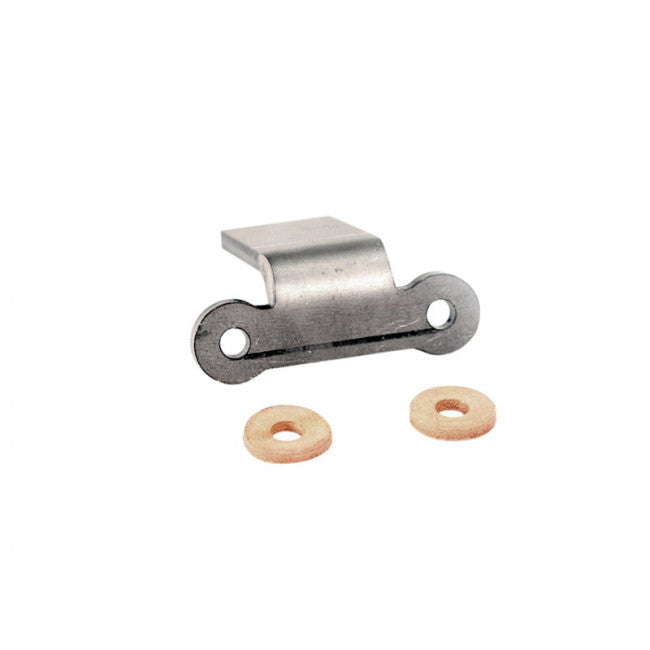

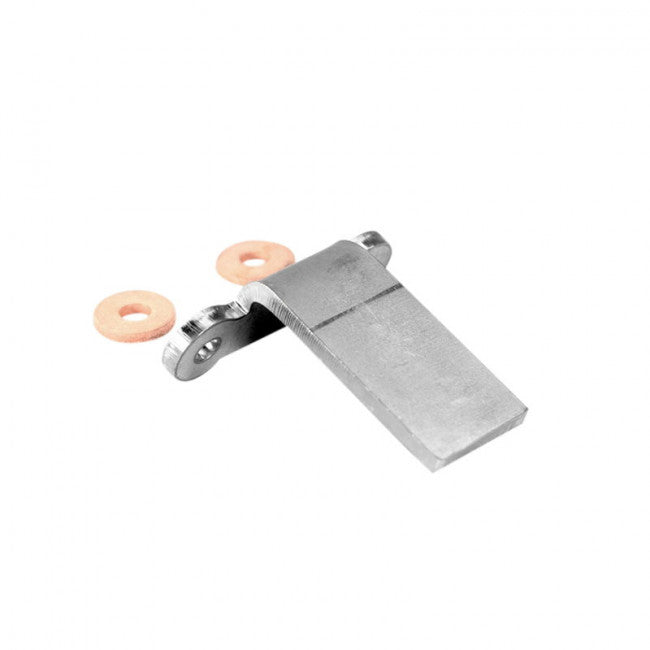

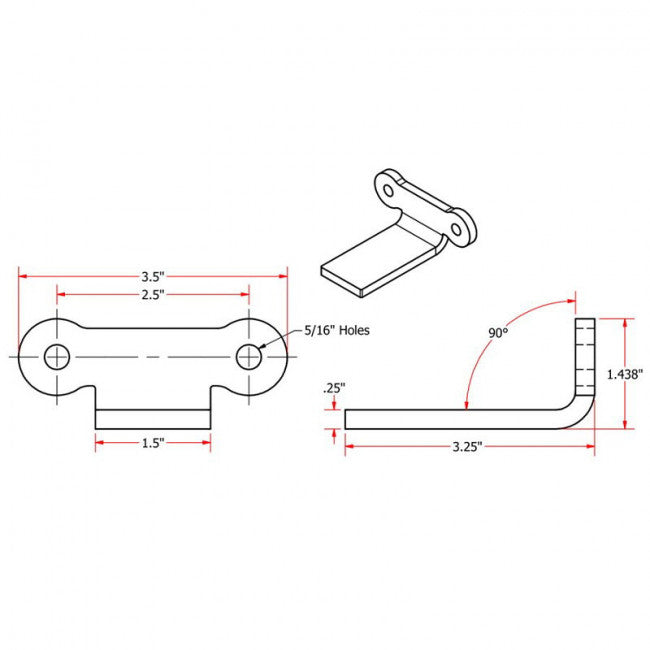

universal fit, weld-on fender mounting bracket is constructed from a single piece of 1/4" thick American made mild steel for easy welding.
Vintage style curves and contours provide eye appeal while the 5/16" diameter mounting holes make for a simple installation. Leather washers are provided to prevent paint damage and provide vibration resistance. This fender bracket is most commonly used to mount flat profile fenders (4.5" minimum width) to a frame cross member. The straight portion of the bracket is easily trimmed to length to fit your application. Although this bracket is designed to best fit flat profile fenders, we have found that it works well to mount TC Bros. SKU #105-0136 rear fender because the center portion of the fender is a very large radius (nearly flat).
Combine this bracket with a set of our universal fender struts (SKU #104-0008) and you have a fender mounting system that will withstand the most demanding rigid frame applications. Sold individually.
Proudly made in the USA.
Motogadget mo.unit blue
Regular price $570.00| L/W/H | 90 x 53 x 30 mm, bolt distance 74 mm |
| Weight | Approx. 180 g |
| Fastener | 2 x M5 stainless steel bolts (installation and ground connection), 1 x M5 screwing contact for battery Plus |
| Operating voltage | 6 V - 20 V |
| Operating temperature | -20°... +80°C |
| Inputs | 1 x input (+12 V switched) for the ignition lock or m.lock 11 x control input (minus/switched to ground) for: Left turn signal Right turn signal Lo/Hi-beam Starter Horn Brake light Kill switch Stand switch LIN bus AUX1 AUX2 |
| Outputs | 10 x Outputs (+12V) for: Left turn signal Right turn signal Lo-beam Hi-beam Starter Horn Brake light Ignition AUX1 AUX2 |
Motogadget m.unit Cable Kit
Regular price $115.00The m.unit Cable Kit is a ready-made set of cables to aid in the assembly of a wiring harness.
This cable kit consists of top-grade copper-strand cables and will help you do quick work of creating a new wiring harness.
The different cable diameters and colors are ideally suited for application in connection with the m.unit. Their number and length are sufficient for most models.
Non-professionals would have to put serious effort into an equivalent assembly.
Additionally, the kit contains multiple cable ties and cable end sleeves. Altogether 1 kg of cables and materials.
Parts delivered
| Cable color | Diameter | Length [m] |
| brown | 2,5 mm² | 5 |
| black | 2,5 mm² | 4 |
| blue | 2,5 mm² | 2 |
| white | 1,5 mm² | 4 |
| red | 1,5 mm² | 2 |
| yellow | 1,5 mm² | 4 |
| orange | 1,5 mm² | 4 |
| green | 1,5 mm² | 2 |
| purple | 1,5 mm² | 2 |
| white | 0,5 mm² | 2 |
| blue | 0,5 mm² | 2 |
| red | 0,5 mm² | 2 |
| yellow | 0,5 mm² | 2 |
| green | 0,5 mm² | 2 |
| orange | 0,5 mm² | 2 |
| purple | 0,5 mm² | 2 |
| brown | 0,5 mm² | 2 |
Cable tie small 15
Cable tie big 15
Cable end sleeves small 10
Cable end sleeves medium 10
Cable end sleeves big 10
Manual
Motogadget mo.blaze pin
Regular price $69.00| Total length with thread | 38,5 mm |
| Length without thread | 19,5 mm |
| Biggest diameter | 16 mm |
| Cable length | ca. 100 cm |
| Weight | ca. 12 g |
| Installation | M8 threaded bolt |
| Power consumption | ca. 3 Watt |
Antigravity - AG-801 Battery (8-Cell)
Regular price $269.99 Sale price $240.00At a very small 4.25″ Length x 2.25″ Depth and 3.75″ Height (to the top of the terminals) this battery offers extreme power in the most compact size in Lithium Motorsport batteries. This battery is best used for applications where extreme weight loss and ultra compact size are desired and can be used for bikes from 600cc street use and 1200cc race use.
Motogadget m.button
Regular price $155.00Another innovation from motogadget: the m.button.
It's a big help - in combination with the new m.unit blue, basic, and m.unit v.2 - in reducing 'cable clutter' and simplifying wiring harnesses.
Integrated into the handlebar tube - or any other adequate location - this tiny cylinder will electrically connect all handlebar instruments, switches, and buttons.
Using state-of-the-art bus technology, the m.button digitally processes signals and transmits them to the m.unit over a thin cable.
The electrical consumers will then be switched inside the m.unit.
All control wires are moved into the handlebar. This saves space, weight, labour, and time. A 'must have' for custom bikes with clean-look handlebars.
In simple facts:
a) normally, the operating current (e.g. headlight or turn signals) is transmitted directly via the wiring of the handlebar switches. Due to the high currents, cables with large cross-sections have to be routed from the fuse box to the switch and back to the electrical consumer.
The result: big cable bundles. Definitely, a 'no go' for custom bikes with restricted space or a concealed electrical system.
b) using the m.unit without the m.button, just a thin cable for each switch- or button-controlled feature has to be routed to the m.unit. These cables only carry minute control currents. All high loads and currents are switched directly at the m.unit and transmitted directly to the electrical consumers. This already leads to a significant reduction and simplification of the wiring harness. Here you can see the example of a circuit diagram.
c) using the m.unit blue, basic, or m.unit v.2 in combination with the tiny m.button, you will once again reduce the number of cables that have to be routed! All switches/buttons on the handlebar are connected at the shortest distance possible and concealed inside the handlebar. Consequently, you will have to route only ONE thin cable from the m.button to the m.unit. All loads and currents will be switched directly at the m.unit (see explanations above). A layout reduced to the max! Here you can see the example of a circuit diagram with the use of m.button
The m.button is completely moulded in, making it water-tight and resistant to vibrations.
The m.button is equipped with connections for
- turn signal, left side
- turn signal, right side
- headlight (low beam and high beam)
- E-starter
- horn
- brake light switch, front brake
m.button – dimensions
Diameter: 12 mm
Length: 25 mm
Cable length: approx. 60 cm
Connecting cable to m.unit: approx. 200 cm
Weight: approx. 30 g
Attention: The only intended use of the m.button is in combination with m.unit blue or m.unit v.2
