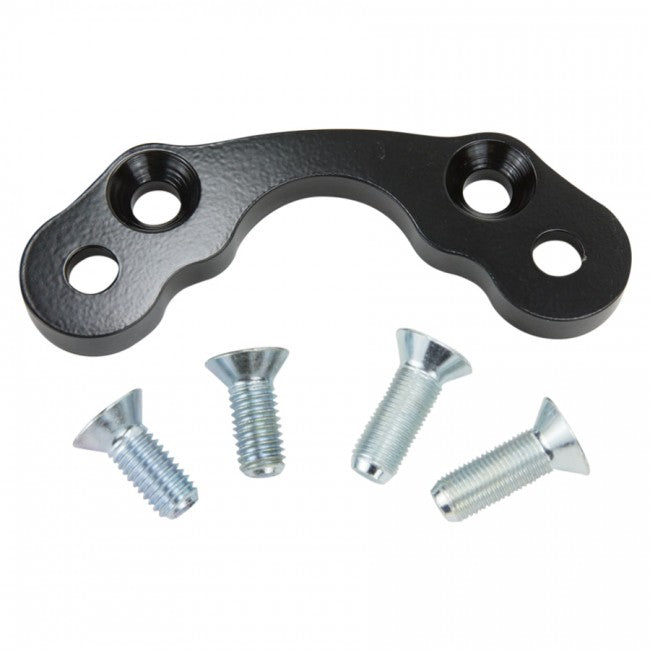

TC Bros Springer Riser Adapter - Black

TC Bros Springer Riser Adapter - Black

$163.00

Handlebar Riser Adapter for Springer Front Ends 3.5" centers - Black

Use this bracket to adapt your 4.75" springer riser spacing to the more common 3.5" spacing found on standard Harley front ends. This enables you to run many different styles of handlebars on your aftermarket springer front end including riserless handlebars with 3.5" spacing. Note that this adapter will NOT work with risers that are "bolt-thru" style (such as TCB Part #101-0040, #101-0041, #101-0042, #101-0043). Any handlebar risers used with this adapter must be internally threaded with 1/2-13 internal threads. Please also note that this adapter only fits AFTERMARKET springer front ends with 1/2-20 internal threads (brands such as Moto Iron, Paughco, DNA, Hardbody, etc.). This adapter does not fit OEM Harley springer front ends as they have larger diameter riser threads.

You may also like

Quick view
TJ Brutal Honda Shadow Solid Handlebar Riser Bushings
from $47.95
Sold Out
Biltwell Slimline Risers 1" - Polished
$209.95
Quick view
Biltwell Slimline Risers 1" - Black
$209.95
Sold Out
Biltwell Slimline Risers 7/8" - Chrome
$139.95
TJ Brutal Honda Shadow Solid Handlebar Riser Bushings
TJ Brutal Honda Shadow Solid Handlebar Riser Bushings
TJ Brutal Honda Shadow Solid Handlebar Riser Bushings
TJ Brutal Honda Shadow Solid Handlebar Riser Bushings

TJ Brutal Honda Shadow Solid Handlebar Riser Bushings

$55.00

Honda Shadow Solid Handlebar Riser Bushings - Fits Bikes With 34mm Riser Pocket

These solid handlebar riser bushings fit all bikes with a 34mm riser pocket in the top tree. These will work with the stock Honda Shadow handlebar risers, as well as with aftermarket handlebar risers. In some cases if you drill out the stock metal bushings inside the Honda Shadow top clamp, you will be able to mount aftermarket handlebar risers or Harley risers in your top clamp!

Includes:

  • QTY 2 Upper Bushings - Thicker for the top of your top clamp
  • QTY 2 Lower Bushings - Thinner for the bottom of your top clamp

Some people may need the lower bushings some may not, enough people gave feedback that they would be helpful so we decided to make sure you have what you need!

These do not replace the stock rubber bushings that are permanently in your top tree, they replace the removable rubber bushings under the risers.

Please pull your risers off to make sure you have a 34mm pocket. some models of VT750 and VT1100, VTX and other shadows did not have this pocket.

ONLY ONE SET NEEDED TO STABILIZE YOUR RISERS

Your Honda Shadow stock top clamp has rubber riser bushings that get mushy over time and your bars can flex pretty bad. This leads to poor handling and a dangerous situation when you need to handle your bike quickly to avoid a collision. The solution to this is to use these solid riser bushings for a positive connection between bars and front suspension.

NOT NEEDED FOR HONDA SHADOW AERO YEARS 2005-2007

Biltwell Slimline Risers 1" - Polished
Biltwell Slimline Risers 1" - Polished
Biltwell Slimline Risers 1" - Polished
Biltwell Slimline Risers 1" - Polished
Biltwell Slimline Risers 1" - Polished
Biltwell Slimline Risers 1" - Polished
Biltwell Slimline Risers 1" - Polished
Biltwell Slimline Risers 1" - Polished

Biltwell Slimline Risers 1" - Polished

$209.95

1" Slimline Risers - Polished

Description

One of our first investment-cast parts remains a popular bolt-on for DIY customizers and pro builders alike. Stainless steel for durability and pure vintage style. One-inch bar clamps and 1/2-13 t.p.i. mounting holes make our Slimline riser a great choice for a wide range of custom motorcycles.

Technical Details

  • Investment-cast stainless steel construction
  • 1.75-inch rise from mounting base to centerline of the handlebar clamp
  • Polished raw or black electroplated finishes are available
  • Accepts stock H-D or aftermarket 1/2-13 t.p.i. mounting hardware
  • Bar clamps feature 5/16-18 t.p.i. stainless-steel Allen cap screws
  • Technischer Überwachungsverein (Technical Inspection Association, or TüV) in Germany is an independent laboratory that tests the fatigue strength, manufacturing quality, and fitment for a wide range of consumer products, with special emphasis on automotive and motorcycle components and accessories. Biltwell handlebars and risers that have received TüV verification are among the strongest and most thoroughly well-tested motorcycle parts in the world.

Form and Function

With their timeless styling and proven investment-cast construction, Slimline risers look and work great on any stock or custom motorcycle you can imagine. Slimline's short 1.75-inch rise gives our all-time best-seller a compact presence on fork trees. NOTE: If your motorcycle has removable bar clamps and the top tree accepts 1/2-inch O.D. mounting hardware, chances are our Slimline riser will fit. Nevertheless, don't jump into this customizing exercise without double-checking fitment on your motorcycle first.





Biltwell Slimline Risers 1" - Black
Biltwell Slimline Risers 1" - Black
Biltwell Slimline Risers 1" - Black
Biltwell Slimline Risers 1" - Black
Biltwell Slimline Risers 1" - Black
Biltwell Slimline Risers 1" - Black
Biltwell Slimline Risers 1" - Black
Biltwell Slimline Risers 1" - Black

Biltwell Slimline Risers 1" - Black

$209.95

1" Slimline Risers - Black

Description

One of our first investment-cast parts remains a popular bolt-on for DIY customizers and pro builders alike. Stainless steel for durability and pure vintage style. One-inch bar clamps and 1/2-13 t.p.i. mounting holes make our Slimline riser a great choice for a wide range of custom motorcycles.

Technical Details

  • Investment-cast stainless steel construction
  • 1.75-inch rise from mounting base to centerline of the handlebar clamp
  • Polished raw or black electroplated finishes are available
  • Accepts stock H-D or aftermarket 1/2-13 t.p.i. mounting hardware
  • Bar clamps feature 5/16-18 t.p.i. stainless-steel Allen cap screws
  • Technischer Überwachungsverein (Technical Inspection Association, or TüV) in Germany is an independent laboratory that tests the fatigue strength, manufacturing quality, and fitment for a wide range of consumer products, with special emphasis on automotive and motorcycle components and accessories. Biltwell handlebars and risers that have received TüV verification are among the strongest and most thoroughly well-tested motorcycle parts in the world.



     Form and Function

     With their timeless styling and proven investment-cast construction, Slimline risers look and work great on any stock or custom motorcycle you can imagine. Slimline's short 1.75-inch rise gives our all-time best-seller a compact presence on fork trees. NOTE: If your motorcycle has removable bar clamps and the top tree accepts 1/2-inch O.D. mounting hardware, chances are our Slimline riser will fit. Nevertheless, don't jump into this customizing exercise without double-checking fitment on your motorcycle first.

    Biltwell Slimline Risers 7/8" - Chrome
    Biltwell Slimline Risers 7/8" - Chrome
    Biltwell Slimline Risers 7/8" - Chrome
    Biltwell Slimline Risers 7/8" - Chrome
    Biltwell Slimline Risers 7/8" - Chrome
    Biltwell Slimline Risers 7/8" - Chrome
    Biltwell Slimline Risers 7/8" - Chrome
    Biltwell Slimline Risers 7/8" - Chrome
    Biltwell Slimline Risers 7/8" - Chrome
    Biltwell Slimline Risers 7/8" - Chrome

    Biltwell Slimline Risers 7/8" - Chrome

    $139.95

    7/8" Slimline Risers - Chrome

    Description

    Our popular DIY riser is now available to fit 7/8-inch handlebars common on metric and vintage British and European motorcycles. Billet CNC-machined 6061 T6 aluminum construction.

    Technical Details

    • CNC machined billet 6061 T-6 aluminum construction
    • .75-inch rise from mounting base to center line of handlebar clamp
    • Chrome and black electroplated finishes available
    • M12 stainless-steel D-bolts with flat washers and Nyloc mounting nuts
    • Bar clamps feature M8 Allen cap hardware
    • Technischer Überwachungsverein (Technical Inspection Association, or TüV) in Germany is an independent laboratory that tests the fatigue strength, manufacturing quality, and fitment for a wide range of consumer products, with special emphasis on automotive and motorcycle components and accessories. Biltwell handlebars and risers that have received TüV verification are among the strongest and most thoroughly well-tested motorcycle parts in the world.



       Form and Function

      With their timeless styling and proven CNC'ed billet alloy construction, 7/8-inch Slimline risers look and work great on any stock or custom motorcycle you can imagine. Slimline's short 1.75-inch rise gives our all-time best-seller a compact presence on fork trees. NOTE: If your motorcycle has removable bar clamps and the top tree accepts 1/2-inch or 12mm O.D. mounting hardware, chances this riser riser will fit. Nevertheless, don't jump into this customizing exercise without double-checking fitment first.

      Biltwell Slimline Risers 7/8" - Black
      Biltwell Slimline Risers 7/8" - Black
      Biltwell Slimline Risers 7/8" - Black
      Biltwell Slimline Risers 7/8" - Black
      Biltwell Slimline Risers 7/8" - Black
      Biltwell Slimline Risers 7/8" - Black
      Biltwell Slimline Risers 7/8" - Black
      Biltwell Slimline Risers 7/8" - Black
      Biltwell Slimline Risers 7/8" - Black
      Biltwell Slimline Risers 7/8" - Black

      Biltwell Slimline Risers 7/8" - Black

      $139.95

      7/8" Slimline Risers - Black

      Description

      Our popular DIY riser is now available to fit 7/8-inch handlebars common on metric and vintage British and European motorcycles. Billet CNC-machined 6061 T6 aluminum construction.

      Technical Details

      • CNC machined billet 6061 T-6 aluminum construction
      • .75-inch rise from mounting base to center line of handlebar clamp
      • Chrome and black electroplated finishes available
      • M12 stainless-steel D-bolts with flat washers and Nyloc mounting nuts
      • Bar clamps feature M8 Allen cap hardware
      • Technischer Überwachungsverein (Technical Inspection Association, or TüV) in Germany is an independent laboratory that tests the fatigue strength, manufacturing quality, and fitment for a wide range of consumer products, with special emphasis on automotive and motorcycle components and accessories. Biltwell handlebars and risers that have received TüV verification are among the strongest and most thoroughly well-tested motorcycle parts in the world.



         Form and Function

        With their timeless styling and proven CNC'ed billet alloy construction, 7/8-inch Slimline risers look and work great on any stock or custom motorcycle you can imagine. Slimline's short 1.75-inch rise gives our all-time best-seller a compact presence on fork trees. NOTE: If your motorcycle has removable bar clamps and the top tree accepts 1/2-inch or 12mm O.D. mounting hardware, chances this riser riser will fit. Nevertheless, don't jump into this customizing exercise without double-checking fitment first.
