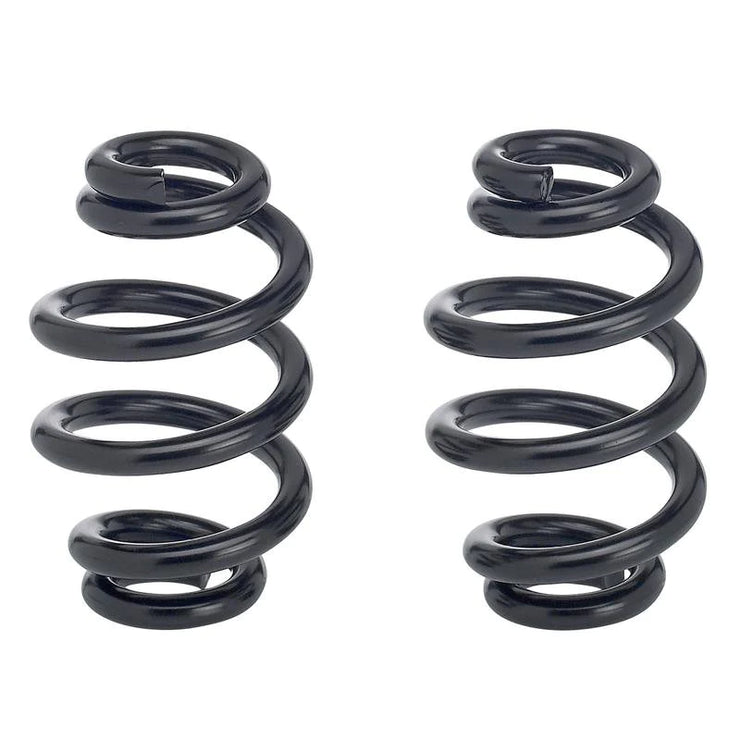

TC Bros 3" Seat Springs - Black

STAINLESS STEEL SEAT HINGE - POLISHED

Overview: This investment-cast stainless steel seat hinge from Biltwell may very well outlast the rest of your motorcycle. Cast in stainless steel and polished, it fits all solo seat pans with protruding hardware in the nose. Two long slots provide a broad range of fore/aft adjustability. This seat hinge features a steel frame bung with self-lubricating bronze pivot bushings. Finished off with a chrome-plated shoulder bolt to fasten the unit to your moto.

• Cast stainless steel
• Mirror polished
• Raw steel frame bung w/ bronze bushings
• Cast Biltwell logo
• Chrome shouldered Allen bolt included

Install Tip: For added insurance, use a drop of your favorite threadlocker when installing the pivot bolt.

Macho Negro Seat Hinge - Black

Overview: This investment-cast stainless steel seat hinge from Biltwell may very well outlast the rest of your motorcycle. Cast in stainless steel and polished, it fits all solo seat pans with protruding hardware in the nose. Two long slots provide a broad range of fore/aft adjustability. This seat hinge features a steel frame bung with self-lubricating bronze pivot bushings. Finished off with a chrome-plated shoulder bolt to fasten the unit to your moto.

• Black electroplated finish
• Raw steel frame bung w/ bronze bushings
• Cast Biltwell logo
• Chrome shouldered Allen bolt included

Install Tip: For added insurance, use a drop of your favourite threadlocker when installing the pivot bolt.

Solo Seat Hinge

This seat bracket will fit most solo seats. It features two long slots for adjustability. The pivot bracket is unfinished so it can be welded to the backbone of your frame. The hinge bung mates seamlessly to 1.5" tubing.

Includes allen head pivot bolt.

TC Bros. Weld-On Front Solo Seat Pivot / Hinge for Bobbers & Choppers

This pivot bracket is made from one piece of 3/16" steel for the ultimate in strength and simplicity. Unlike welded pivot brackets, the one piece design eliminates the possibility of a cracked seat pivot bracket caused by a failed weld. It also makes for a very low profile that looks great on just about every aftermarket spring style solo seat made. The long slotted holes permit a wide range of fitments and allow for adjustability. The finish on the bracket is black powdercoat for durability. This simple design also permits the weld-on mount to be mounted to either a round frame tube or a flat surface without a standoff and without interference to the pivoting action because the weld-on pivot mount is slightly larger in diameter than the rest of the components. The weld-on pivot mount is raw finish steel and ready to weld. The 3/8" hex socket cap bolt is stainless steel, as well as the washer and nylock nut so they will never rust. The replaceable bushings are oil impregnated bronze for a squeak free ride and very long life. Fitment possibilities are nearly endless. If you have a solo seat with springs on it, this bracket will probably fit.

Made in USA.

Weld On Solo Seat Spring Mounts

TC Bros. Choppers pair of Custom Weld on Chopper/Bobber Solo Seat Spring mounts.

Great for torsion style seat springs.

CNC Machined from 1018 cold rolled steel and are ready to weld on.
Stainless Steel Studs are 5/16"-18 thread and base is 1" diameter with a 1 1/8" radius coped into the mount. Easily fits 1" and 1 1/4" cross tubes.

Kit Includes 2 CNC Machined mild steel mounts, 2 stainless steel washers, 2 stainless steel studs, 2 nylock nuts. (seat springs not included).

Just like their front seat pivot these are universal and can fit endless applications.
