motogadget mo.switch basic LED

Name: motogadget mo.switch basic LED
Brand: motogadget
Price: 224.0 CAD
Availability: InStock

$224.00

Colour — Black Anodized Right

Black Anodized Right

Black Anodized Left

Quantity

[{"id":44852916355315,"title":"Black Anodized Right","option1":"Black Anodized Right","option2":null,"option3":null,"sku":"4004036","requires_shipping":true,"taxable":true,"featured_image":{"id":40600012554483,"product_id":8437232238835,"position":3,"created_at":"2024-03-05T14:36:00-05:00","updated_at":"2024-03-05T14:36:01-05:00","alt":null,"width":800,"height":800,"src":"\/\/perthcountymoto.com\/cdn\/shop\/files\/Motogadget__MoSwitch_BasicLED_3RW_Black6107-motorcycle-perth-county-moto.jpg?v=1709667361","variant_ids":[44852916355315]},"available":true,"name":"motogadget mo.switch basic LED - Black Anodized Right","public_title":"Black Anodized Right","options":["Black Anodized Right"],"price":22400,"weight":181,"compare_at_price":22400,"inventory_quantity":3,"inventory_management":"shopify","inventory_policy":"deny","barcode":"4255676302569","featured_media":{"alt":null,"id":33280439681267,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/perthcountymoto.com\/cdn\/shop\/files\/Motogadget__MoSwitch_BasicLED_3RW_Black6107-motorcycle-perth-county-moto.jpg?v=1709667361"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44852916420851,"title":"Black Anodized Left","option1":"Black Anodized Left","option2":null,"option3":null,"sku":"4004035","requires_shipping":true,"taxable":true,"featured_image":{"id":40600012587251,"product_id":8437232238835,"position":4,"created_at":"2024-03-05T14:36:14-05:00","updated_at":"2024-03-05T14:36:16-05:00","alt":null,"width":800,"height":800,"src":"\/\/perthcountymoto.com\/cdn\/shop\/files\/Motogadget__MoSwitch_BasicLED_3L-motorcycle-perth-county-moto.jpg?v=1709667376","variant_ids":[44852916420851]},"available":true,"name":"motogadget mo.switch basic LED - Black Anodized Left","public_title":"Black Anodized Left","options":["Black Anodized Left"],"price":22400,"weight":181,"compare_at_price":22400,"inventory_quantity":3,"inventory_management":"shopify","inventory_policy":"deny","barcode":"4255676302552","featured_media":{"alt":null,"id":33280441319667,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/perthcountymoto.com\/cdn\/shop\/files\/Motogadget__MoSwitch_BasicLED_3L-motorcycle-perth-county-moto.jpg?v=1709667376"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

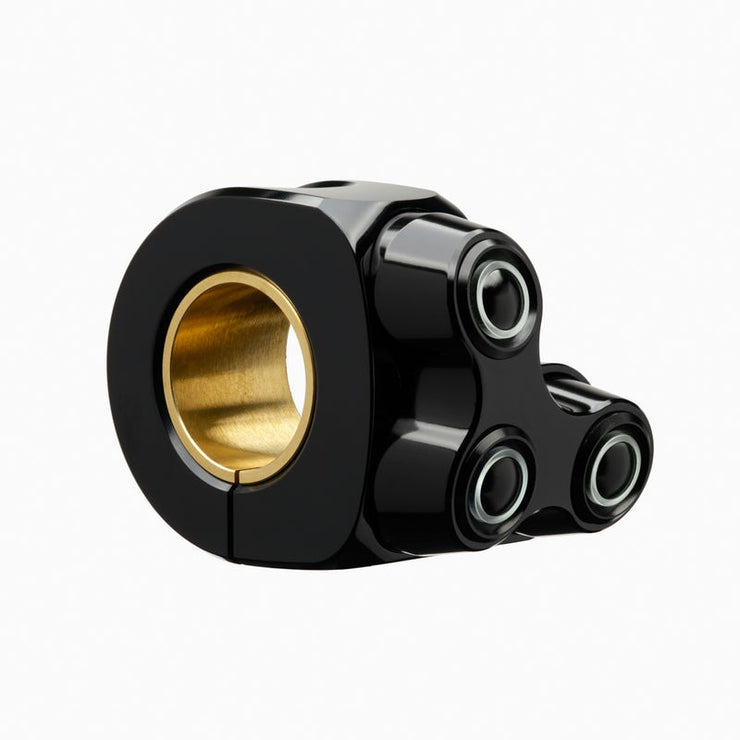

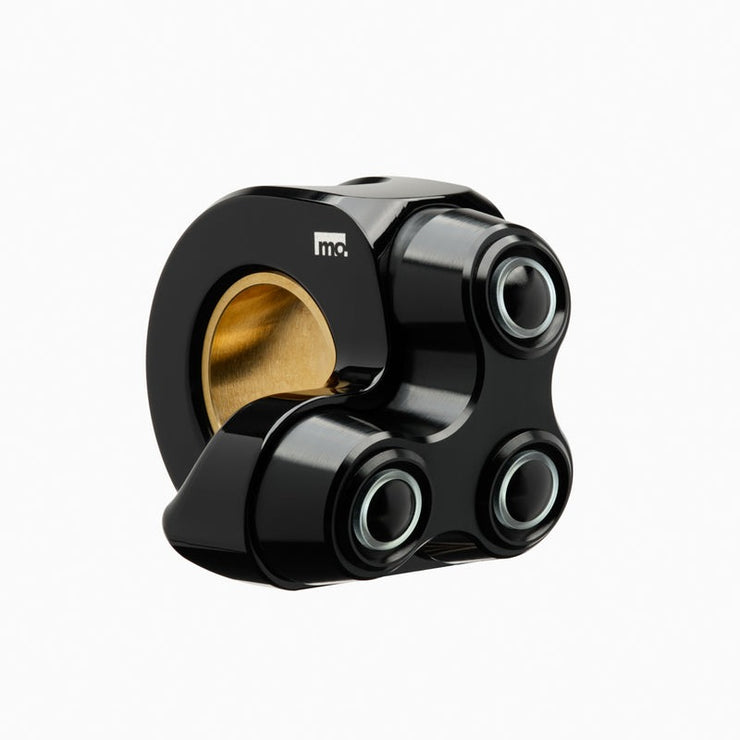

mo.switch basic LED 3-button

The mo.switch basic LED is a universal, high-quality pushbutton fitting for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In conjunction with an electronic pushbutton control (not included), these CNC-manufactured pushbutton fittings can switch all electrical units such as lights, turn signals, e-starters, horns and much more.

CNC machined from billet aluminum, the housing is anodized in gloss black.

The individual pushbuttons are of high quality, very robust and protected against vibration and splash water (IP65).

Due to sufficient size and ergonomic pressure point (light, mechanical detent), they enable a safe switching feeling during operation - even when operated with a glove.

Due to two connections per pushbutton, a one-wire or two-wire circuit is easily possible. A connection for ground is already provided internally for the one-wire circuit. A cable routing in the handlebar is therefore easy to perform.

In case of possible damage, the probes are available individually and are replaceable.

Scope of delivery

mo.switch basic aluminum housing
2 or 3 high quality pushbuttons per unit
QR code for mounting and operating instructions

Technical Data

Inner diameter: 22 mm and 1 inch
Outer diameter housing: approx. 45 mm
Width: 2 styli 22 mm, 3 styli 42.5 mm
Pushbutton completely wired
high quality connection cable with 1,8m length
LED illuminated buttons
high quality CNC milled from solid material and anodized UV resistant
Housing color black, button black, button LED color white
maximum pushbutton switching current: 1A, all pushbuttons switch to ground
additional switching electronics mo.unit required

mo.switch basic 2-button

The mo.switch basic is a universal, high-quality push-button control for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In combination with an electronic push-button control box (not included), these CNC-made push-buttons can switch all electrical units such as lights, indicators, electric starters, horn and much more.

CNC-milled from billet aluminum the housing is anodized in glossy black. Optionally, the button holder (inlay) is also available with a silver anodized colour. The compact housing is equipped with either two or three pushbuttons. All buttons are always in the direction to the driver.

The two or three buttons per unit are always black. A hidden M4 stainless steel mounting screw clamps the housing securely to each handlebar.

The individual buttons are of high quality, very robust and protected against vibrations and splash water (IP65).

Due to sufficient size and ergonomic pressure point (light, mechanical detent), they allow a safe operation - even when operating with a glove.

A single-wire or two-wire wiring is easily possible by two terminals per push-button. One terminal for ground is already provided internally for single-wire wiring. Cable routing in the handlebars is therefore easy.

In case of possible damage, the single push-buttons are available individually and can be replaced.

The mo.switch basic is of course compatible with all common push-button controls such as the mo.unit blue/basic.

Scope of delivery

mo.switch basic billet housing
2 or 3 push-buttons per unit
Manual

Motogadget m.switch 3 button

$157.00

m.switch 3 button

PLEASE NOTE: m.switch 22mm black with 2 and 3 buttons black - ABOUT 6 - 8 WEEKS DELIVERY TIME

New: Now also with 3 push-buttons per unit.

The m.switch is a high-quality universal push-button control for handlebars with 1 in. or 22 mm (7/8 in.) tube diameter in a plain and elegant design.

These finely CNC machined hand controls in combination with an electronic push-button control unit (not included in kit) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.

The casing is made from CNC machined billet aluminum and is available in mirror polished or reflective black finished surfaces respectively.
The compact design casing permits mounting two or more units on one handle bar.

Each unit is equipped with two or three push buttons in black or stainless steel. Different looks matching or contrasting the casing can be combined freely. Two flush built-in M5 stainless steel mounting screws (only one screw on the three-button version) ensure secure and stable clamping of the push-button control to all handle bars.

The push-buttons are of high quality, very robust design and vibration- and spray water-proof (IP65). The adequate size and ergonomic pressure point (easy, mechanical detent) provide for a definite actuation sensing - even when operated with gloves. This feedback allows shifting without the need to check the operation.

Each push-button is equipped with two terminals for an easy optional circuit layout with only one or two cables. The internal ground terminal is already provided for the 'one cable layout'. Therefore, the routing of the cable inside the handle bar can be performed easily.

The push-buttons are available separately and can be replaced if damaged. The m.switch is of course compatible to all common push-button controls, e.g. the m-Unit.

Motogadget m.switch 2 button

$145.00

m.switch 2 button

PLEASE NOTE: m.switch 22mm black with 2 and 3 buttons black - ABOUT 6 - 8 WEEKS DELIVERY TIME

New: Now also with 3 push-buttons per unit.

The m.switch is a high-quality universal push-button control for handlebars with 1 in. or 22 mm (7/8 in.) tube diameter in a plain and elegant design.

These finely CNC machined hand controls in combination with an electronic push-button control unit (not included in the kit) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.

The casing is made from CNC machined billet aluminum and is available in mirror polished or reflective black finished surfaces respectively.
The compact design casing permits mounting two or more units on one handlebar.

Each unit is equipped with two or three push buttons in black or stainless steel. Different looks matching or contrasting the casing can be combined freely. Two flush built-in M5 stainless steel mounting screws (only one screw on the three-button version) ensure secure and stable clamping of the push-button control to all handlebars.

The push-buttons are of high quality, very robust design and vibration- and spray water-proof (IP65). The adequate size and ergonomic pressure point (easy, mechanical detent) provide for a definite actuation sensing - even when operated with gloves. This feedback allows shifting without the need to check the operation.

Each push-button is equipped with two terminals for an easy optional circuit layout with only one or two cables. The internal ground terminal is already provided for the 'one cable layout'. Therefore, the routing of the cable inside the handlebar can be performed easily.

The push buttons are available separately and can be replaced if damaged. The m.switch is of course compatible with all common push-button controls, e.g. the m-Unit.

Motogadget m.switch mini

$210.00

m.switch mini

The m.switch mini is a high-quality universal push-button control for handle bars with 1 in. or 22 mm (7/8 in.) tube diameter in a plain and elegant design.

These finely CNC machined hand controls in combination with an electronic push-button control unit (NOT INCLUDED IN KIT) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.

The casing is made from CNC-machined billet aluminum and is available in mirror-polished or black-finished surfaces respectively. Two flush built-in M5 stainless steel mounting screws ensure secure and stable clamping of the push-button control to all handlebars.

The push-buttons are of high quality, very robust design, and are vibration- and spray water-proof (IP65).

The m.switch mini is of course compatible with all common push-button controls, e.g. the m-Unit.
