$309.95

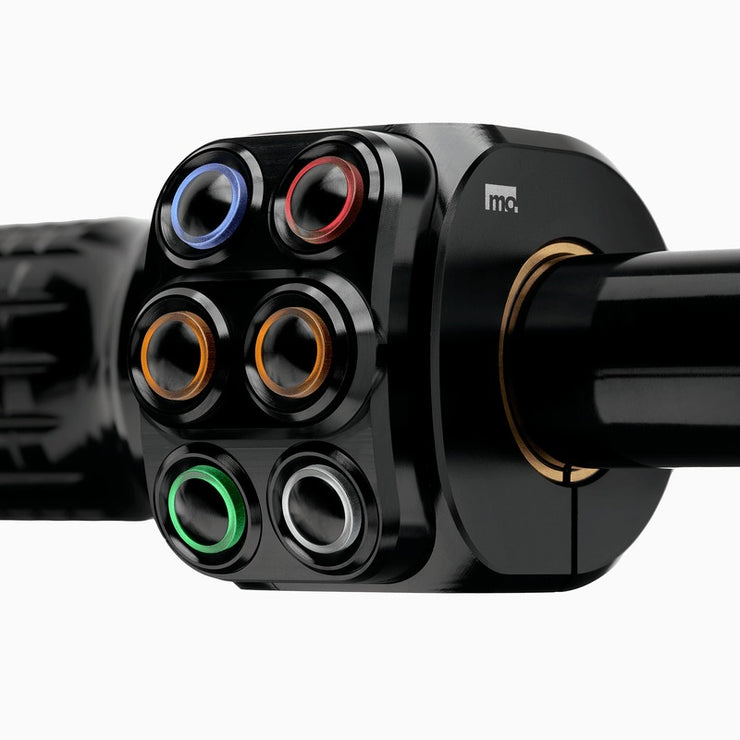

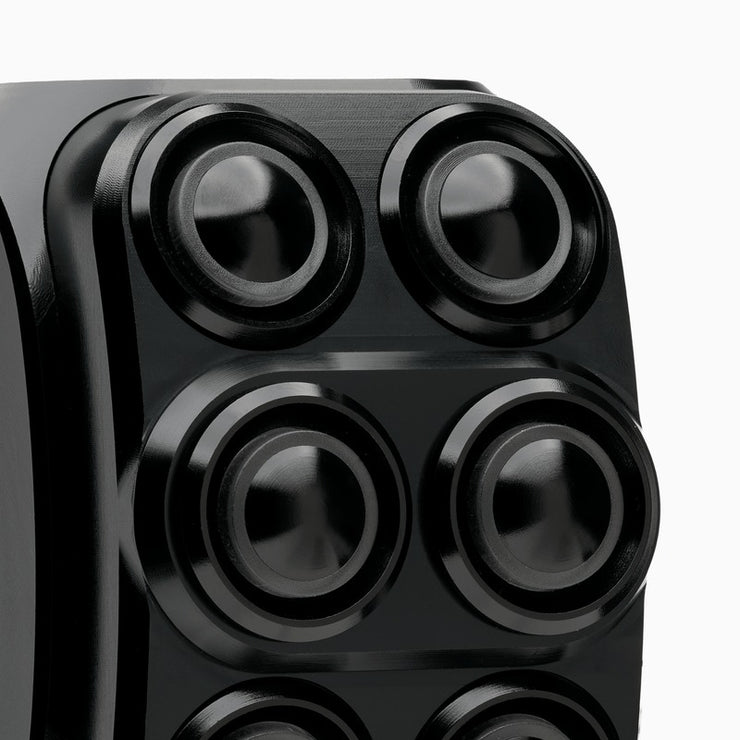

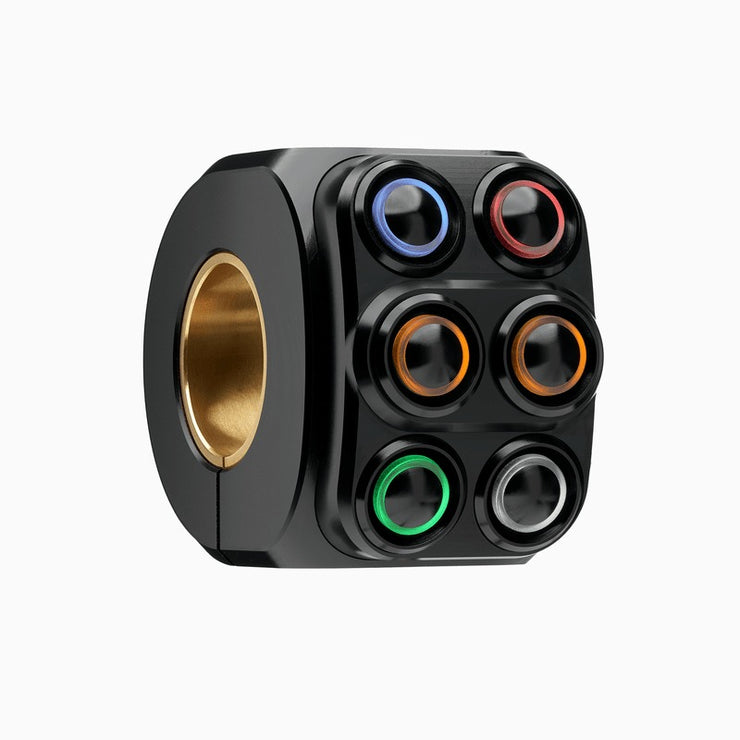

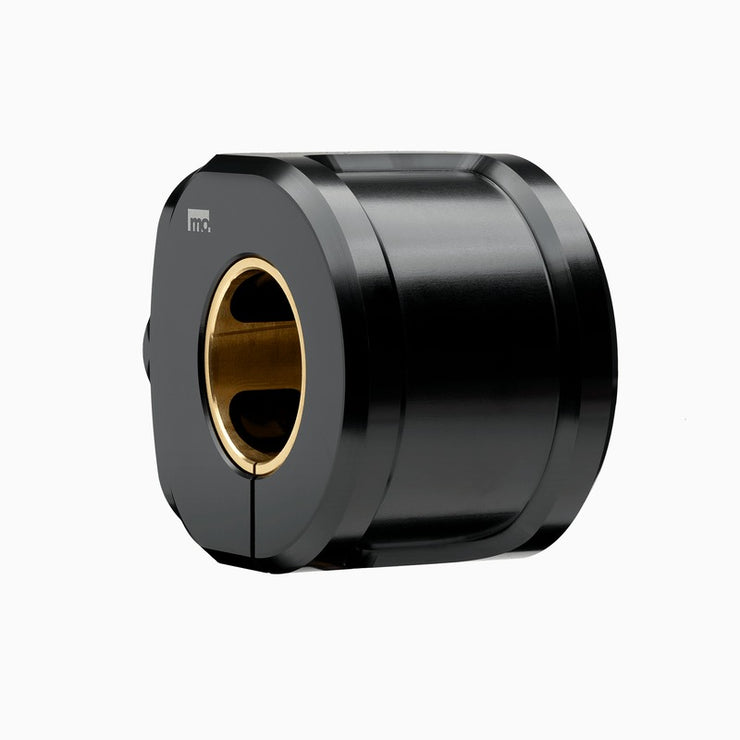

mo.switch pro

The mo.switch pro is our flagship product. A universal, high-quality switch fitting suitable for handlebar diameters of 22.2 mm or 25.4 mm.

The left-hand pushbutton panel is designed as a complete solution and includes all standard pushbuttons required to control the vehicle.

CNC machined from billet aluminum, the housing is black anodized. A hidden M4 stainless steel mounting screw clamps the unit securely to the handlebar.

The two-part design in clamp housing and stylus inlay makes mounting child's play. The supplied handlebar adapter acts here as a drilling template.

The mo.switch pro is "ready to connect". Everything has already been completely wired, as we have already carried out the time-consuming connection of the individual buttons with the respective LED lighting.

The pushbutton unit is waterproof molded on the back and equipped with a highly flexible, black, 8-core cable.

The 1.8m cable is specially manufactured to our specifications, has a low cross-section and is perfect for routing through a handlebar.

The pushbuttons used are of high quality, vibration resistant and jet water protected according to IP65. The button size and the ergonomic pressure point give an optimal switching feeling when operating with gloves.

Technical Data

  • Pushbutton unit pre-wired and waterproof encapsulated
  • High quality connection cable with 1.8m length
  • Jet water resistant according to IP65
  • Ring-shaped LED illumination of the individual buttons
  • Button functions: Horn | High beam | Turn signal left & right | Starter | Instrument
  • Clean look without visible screws
  • Easy mounting without wiring of individual pushbuttons
  • Suitable for handlebar diameter 22.2mm (7/8") or 25.4mm (1")
  • High quality CNC milled from aircraft aluminum and UV resistant anodized
  • Housing color black, button black, button LED colors red, green, blue, white, yellow
  • Maximum pushbutton switching current: 1A, all pushbuttons switch to ground
  • Additional switching electronics mo.unit required
  • Height 48mm, width 36mm, depth 58mm

Scope of delivery

  • Pushbutton unit with 1.8m connection cable
  • Mounting screws

You may also like

Quick view
motogadget mo.switch basic
$155.00
Quick view
motogadget mo.switch basic
$135.00
Quick view
Motogadget m.switch 3 button
$160.00
Quick view
Motogadget m.switch 2 button
$130.00
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic

motogadget mo.switch basic

$155.00

mo.switch basic 3-button

The mo.switch basic is a universal, high-quality push-button control for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In combination with an electronic push-button control box (not included), these CNC-made push-buttons can switch all electrical units such as lights, indicators, electric starters, horn and much more.

CNC-milled from billet aluminum the housing is anodized in glossy black. Optionally, the button holder (inlay) is also available with a silver anodized colour. The compact housing is equipped with either two or three pushbuttons. All buttons are always in the direction to the driver.

The two or three buttons per unit are always black. A hidden M4 stainless steel mounting screw clamps the housing securely to each handlebar.

The individual buttons are of high quality, very robust and protected against vibrations and splash water (IP65).

Due to sufficient size and ergonomic pressure point (light, mechanical detent), they allow a safe operation - even when operating with a glove.

A single-wire or two-wire wiring is easily possible by two terminals per push-button. One terminal for ground is already provided internally for single-wire wiring. Cable routing in the handlebars is therefore easy.

In case of possible damage, the single push-buttons are available individually and can be replaced.

The mo.switch basic is of course compatible with all common push-button controls such as the mo.unit blue/basic.

Scope of delivery

  • mo.switch basic billet housing
  • 2 or 3 push-buttons per unit
  • Manual
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic
motogadget mo.switch basic

motogadget mo.switch basic

$135.00

mo.switch basic 2-button

The mo.switch basic is a universal, high-quality push-button control for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In combination with an electronic push-button control box (not included), these CNC-made push-buttons can switch all electrical units such as lights, indicators, electric starters, horn and much more.

CNC-milled from billet aluminum the housing is anodized in glossy black. Optionally, the button holder (inlay) is also available with a silver anodized colour. The compact housing is equipped with either two or three pushbuttons. All buttons are always in the direction to the driver.

The two or three buttons per unit are always black. A hidden M4 stainless steel mounting screw clamps the housing securely to each handlebar.

The individual buttons are of high quality, very robust and protected against vibrations and splash water (IP65).

Due to sufficient size and ergonomic pressure point (light, mechanical detent), they allow a safe operation - even when operating with a glove.

A single-wire or two-wire wiring is easily possible by two terminals per push-button. One terminal for ground is already provided internally for single-wire wiring. Cable routing in the handlebars is therefore easy.

In case of possible damage, the single push-buttons are available individually and can be replaced.

The mo.switch basic is of course compatible with all common push-button controls such as the mo.unit blue/basic.

Scope of delivery

  • mo.switch basic billet housing
  • 2 or 3 push-buttons per unit
  • Manual
Motogadget m.switch 3 button
Motogadget m.switch 3 button
Motogadget m.switch 3 button
Motogadget m.switch 3 button

Motogadget m.switch 3 button

$160.00

m.switch 3 button

PLEASE NOTE: m.switch 22mm black with 2 and 3 buttons black - ABOUT 6 - 8 WEEKS DELIVERY TIME

New: Now also with 3 push-buttons per unit.

The m.switch is a high-quality universal push-button control for handlebars with 1 in. or 22 mm (7/8 in.) tube diameter in a plain and elegant design.

These finely CNC machined hand controls in combination with an electronic push-button control unit (not included in kit) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.

The casing is made from CNC machined billet aluminum and is available in mirror polished or reflective black finished surfaces respectively.
The compact design casing permits mounting two or more units on one handle bar.

Each unit is equipped with two or three push buttons in black or stainless steel. Different looks matching or contrasting the casing can be combined freely. Two flush built-in M5 stainless steel mounting screws (only one screw on the three-button version) ensure secure and stable clamping of the push-button control to all handle bars.

The push-buttons are of high quality, very robust design and vibration- and spray water-proof (IP65). The adequate size and ergonomic pressure point (easy, mechanical detent) provide for a definite actuation sensing - even when operated with gloves. This feedback allows shifting without the need to check the operation.

Each push-button is equipped with two terminals for an easy optional circuit layout with only one or two cables. The internal ground terminal is already provided for the 'one cable layout'. Therefore, the routing of the cable inside the handle bar can be performed easily.

The push-buttons are available separately and can be replaced if damaged. The m.switch is of course compatible to all common push-button controls, e.g. the m-Unit.

Motogadget m.switch 2 button
Motogadget m.switch 2 button
Motogadget m.switch 2 button
Motogadget m.switch 2 button

Motogadget m.switch 2 button

$130.00

m.switch 2 button

PLEASE NOTE: m.switch 22mm black with 2 and 3 buttons black - ABOUT 6 - 8 WEEKS DELIVERY TIME

New: Now also with 3 push-buttons per unit.

The m.switch is a high-quality universal push-button control for handlebars with 1 in. or 22 mm (7/8 in.) tube diameter in a plain and elegant design.

These finely CNC machined hand controls in combination with an electronic push-button control unit (not included in the kit) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.

The casing is made from CNC machined billet aluminum and is available in mirror polished or reflective black finished surfaces respectively.
The compact design casing permits mounting two or more units on one handlebar.

Each unit is equipped with two or three push buttons in black or stainless steel. Different looks matching or contrasting the casing can be combined freely. Two flush built-in M5 stainless steel mounting screws (only one screw on the three-button version) ensure secure and stable clamping of the push-button control to all handlebars.

The push-buttons are of high quality, very robust design and vibration- and spray water-proof (IP65). The adequate size and ergonomic pressure point (easy, mechanical detent) provide for a definite actuation sensing - even when operated with gloves. This feedback allows shifting without the need to check the operation.

Each push-button is equipped with two terminals for an easy optional circuit layout with only one or two cables. The internal ground terminal is already provided for the 'one cable layout'. Therefore, the routing of the cable inside the handlebar can be performed easily.

The push buttons are available separately and can be replaced if damaged. The m.switch is of course compatible with all common push-button controls, e.g. the m-Unit.

Motogadget m.switch mini
Motogadget m.switch mini
Motogadget m.switch mini
Motogadget m.switch mini

Motogadget m.switch mini

$199.95

m.switch mini

The m.switch mini is a high-quality universal push-button control for handle bars with 1 in. or 22 mm (7/8 in.) tube diameter in a plain and elegant design.

These finely CNC machined hand controls in combination with an electronic push-button control unit (NOT INCLUDED IN KIT) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.

The casing is made from CNC-machined billet aluminum and is available in mirror-polished or black-finished surfaces respectively. Two flush built-in M5 stainless steel mounting screws ensure secure and stable clamping of the push-button control to all handlebars.

The push-buttons are of high quality, very robust design, and are vibration- and spray water-proof (IP65).

The m.switch mini is of course compatible with all common push-button controls, e.g. the m-Unit.


Specifications and features

Inner diameter 22 mm or 1 Inch
Outer diameter 45 mm
Width 14 mm
Length of cable 200 mm
