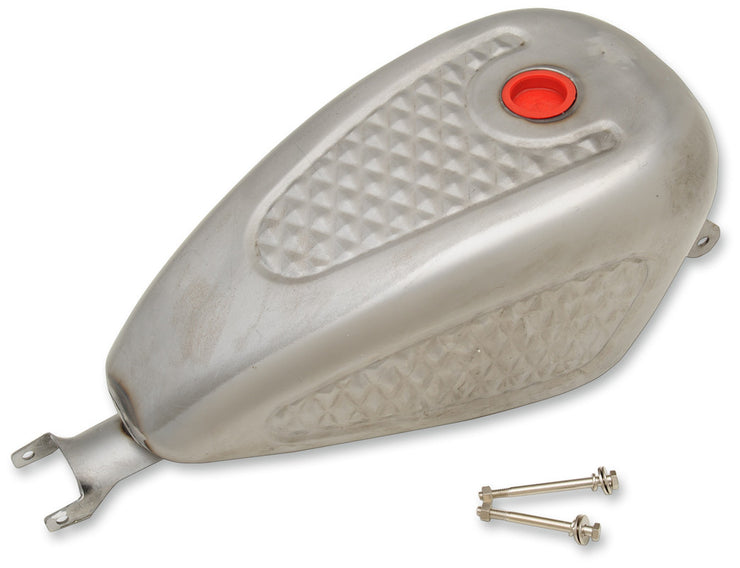

Drag Specialties Custom Sporty-Style Diamond Pattern Gas Tank

Perth County Moto X Savage Customs Sporty Tank

It's the collab you've been waiting for! PCM and Savage Customs have partnered to bring you this piece of art. Our good pal Jamie, over at Savage Customs, has been mixing up Kandy paints and metal flakes. He's laid down this one-off original paint job on a Sporty-style frisco tank. Bolt this onto your current bike to take it up a notch or use this as your starting point for a new project!

What the hell did Jamie do!?

He went to town as he always does! The tank is black with panels of deep orange/red Kandy with a textured effect. It has pearly peach designs and is trimmed with silver flake pin stripping. The tank has an official collab badge painted in peach at the back. As always, Jamie has finished it all off with a polish that makes the paint look as deep as the Mariana Trench!

There is only one of these sweet ladies in existence so don't waste too much time thinking about it!!

About the tank

• Low tunnel tank
• 2.4 Gallon
• Mounts easily with front and rear tabs (custom mounting required)
• Has a 3/8" NPT petcock bung on the left side and two 1/4" NPT petcock bungs at rear
• Uses 1982/later screw-in vented gas cap (not included)
• We always suggest lining a new tank as cheap insurance. The Kreem Lining Kit works great!
• This Universal Mounting Kit makes it easy to install

Wassell Style Peanut Tank (Mid-Tunnel)

Want that timeless "Wassell" styling but don’t want to have to deal with overpaying for a leaky rusty tank at a swap meet? TC Bros. has your solution! The 2 gallon "Wassell" Peanut Bobber Tank.

This tank features a "frisco" style mid tunnel so that the tank sits just right on the backbone of your frame. Un-drilled front and rear universal mounting tabs keep mounting this tank simple. Popular screw-in-style gas cap bung, single 3/8" NPT and dual rear 1/4" NPT petcock bungs give you plenty of options for petcocks and gas caps. You can't go wrong with this classic styled gas tank!

Even though these tanks are pressure tested from the factory. We recommend sealing any custom tank with Kreem Tank Sealer before painting! It is cheap insurance and we use it on every bike that we build. Also, assure the tank is properly isolated so there is no unnecessary stress placed on the tank our mounting hardware when the tank is mounted. We highly recommend using the gas tank mounting kit for proper installation.

This tank does not fit 2004-newer Sportsters as the backbone tube is too large in diameter.

Mid Tunnel Tank dimensions are as follows; Tunnel Width 2 1/8", Length 15 1/2", Depth 2" in the rear, approx. 4" in the front.

Sportster Style Tank

• Low tunnel tank
• 2.4 Gallon
• Mounts easily with front and rear tabs (custom mounting required)
• Sold in two bung configurations. The first has a 3/8" NPT petcock bung on the left side and two 1/4" NPT petcock bungs at rear
• The second configuration has a 3/8" NPT petcock bung on the left side but DOES NOT have the 1/4" NPT bungs
• Uses 1982/later screw in vented gas cap (not included)
• We always suggest lining a new tank as cheap insurance. The Kreem Lining Kit works great!
• This Universal Mounting Kit makes it easy to install

Wassell Style Peanut Tank (Low-Tunnel)

Want that timeless "Wassell" styling but don’t want to have to deal with overpaying for a leaky rusty tank at a swap meet? TC Bros. has your solution! The 2 gallon "Wassell" Peanut Bobber Tank.

This tank features a "frisco" style low tunnel so that the tank sits high on the backbone of your frame. Un-drilled front and rear universal mounting tabs keep mounting this tank simple. Popular screw-in-style gas cap bung, single 3/8" NPT and dual rear 1/4" NPT petcock bungs give you plenty of options for petcocks and gas caps. You can't go wrong with this classic styled gas tank! Even though these tanks are pressure tested from the factory.

We always suggest using a Kreem Lining Kit on new tanks.  These Tank Mounting Bungs make installation a lot easier too!

Wasp Style Fuel Tank

• Wasp-style narrow gas tank for custom applications that have a great vintage look
• Also known as an "Axed" style tank
• Made from precision steel stamping
• 2.2 Gallon
• Has a right side 3/8" NPT and left side 1/4" NPT petcock bung
• Universal brackets make it easy to mount it to any stock or custom frame
• Uses 73'-81' style cam lock caps like this chrome one or this black one
• 17.57" L x 9" W x 9" D
• The tunnel is 2.5" W x 3.5" D
• We always suggest lining any new tank. It is cheap insurance and the Kreem Lining Kit works great
• The Universal Mounting Kit makes installation easy
