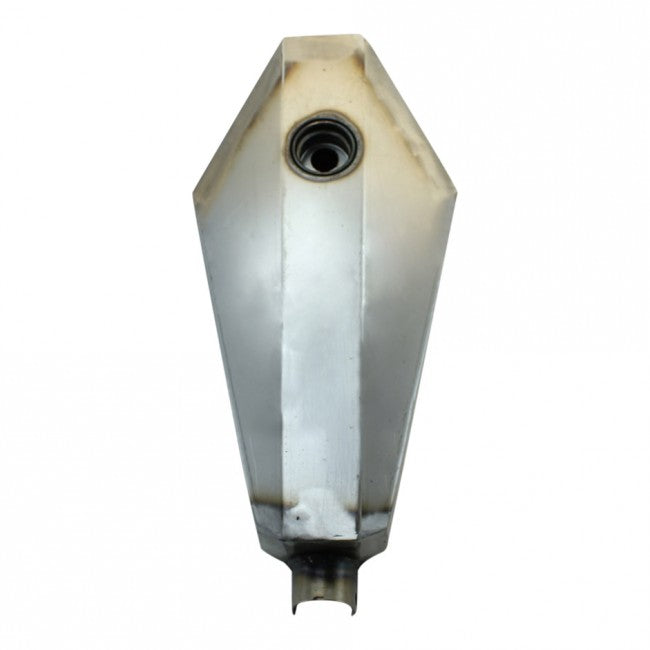

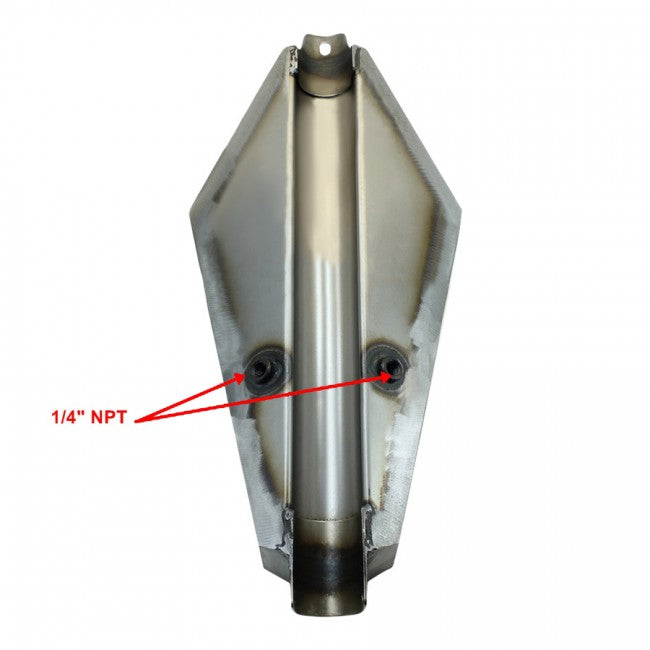

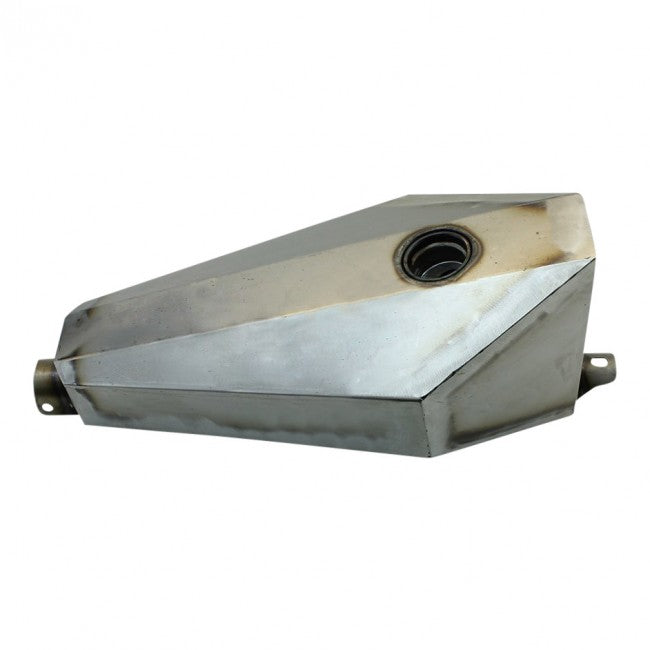

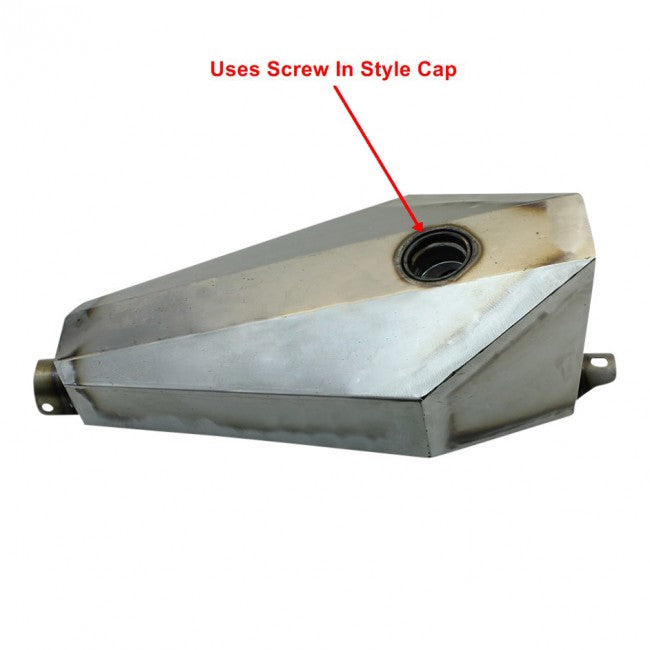

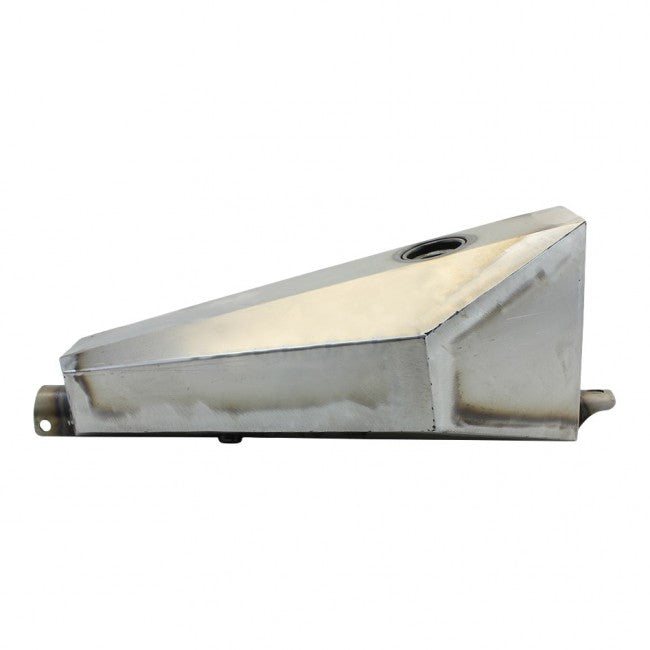

The tank uses a screw-in-style gas cap and has threaded ports for 1/4" petcocks.
Even though these tanks are pressure tested from the factory. It is recommended to seal any custom tank with a Kreem Tank Sealer Kit before painting. Also, assure there is no stress on the tank mounting hardware when the tank is mounted.
Dimensions:
Top Length: 18" Bottom Length: 17" Rear Width: 4"
Front Width: 4" Rear Height: 3" Front Height: 8"
Front Tunnel Height: 1.5" Rear Tunnel Height: 1.5" Top Tunnel Width: 1-13/16"
Bottom Tunnel Width: 1-13/16" Tunnel Length: 17"
TC Bros.-Leather Cushion Washers with 3/8 inch Hole 10 pack
Regular price $12.00These leather washers are perfect for protecting your paint and are more durable than rubber. The cushioning & dampening effect that these washers provide is perfect for installing between your frame and mounting tabs found on gas tanks, fenders, oil tanks, or anything else you want to protect from vibration. Also great for use under solo seat springs to prevent squeaking. Dimensions are 1 inch diameter x 3/8 inch hole x 1/8 inch thick. Sold in pack of 10 washers.
TC Bros Universal Frisco Gas Tank Mounting Kit
Regular price $36.95Includes 3/8"-16 Stainless steel button head bolts, 1018 mild steel tophat bungs, leather cushion washers, stainless steel washers.
TC Bros Fuel Reserve Bottle
Regular price $38.00TC Bros - Heavy Duty Oil Tank Mounting Kit
Regular price $70.00Use this kit to mount TC Bros. Oil Tanks to our Sportster Hardtail.
Can also be used for universal applications. Made in USA
Prism Supply Co Petcock 1/4" NPT
Regular price $145.00The Prism Supply Co petcocks are guaranteed for life! If you're having an issue with it you can send it back to them and they will rebuild it for no additional cost!
This unique petcock fits direct to either a 1/4" NPT bung on your gas tank. This keeps your gas tank looking very clean. It features a 5/16" diameter hose barb on one end and a fuel filter on the other. We recommend using our 1/4" Fuel Line for a snug, leak-proof fit. Rotating the cylindrical piece with the two grooves is how the fuel is toggled on and off. The fuel line does not rotate while toggling the fuel on/off. No reserve.
Many custom and aftermarket gas tanks use a 1/4 inch NPT or 3/8 NPT petcock. NPT stands for National Pipe Thread and it is a tapered thread that seals as you tighten the petcock into the threaded fitting on your gas tank. Lowbrow Customs makes petcock adapter nuts in both brass and chrome that allow you to adapt your 22mm petcock bung to accept either a 1/4 inch NPT or 3/8 inch NPT petcock.
