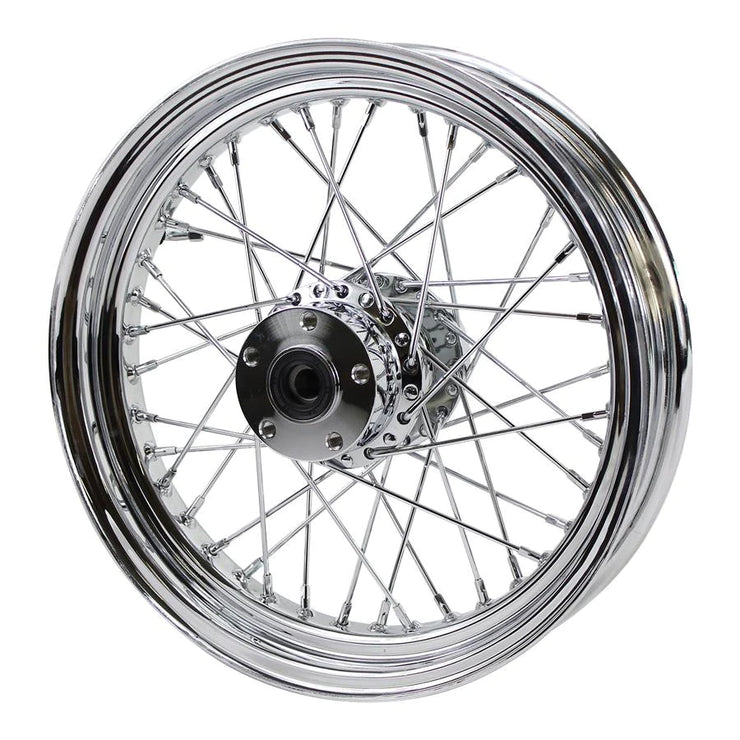

Moto Iron Chrome Rear 40 Spoke Wheel 16 "X 3"

Chrome Front 40 Spoke Wheel 21 "x 2.15" fits Harley FXST, FXDWG, 1984-1999 fits Moto Iron Springers

Chrome Front 40 Spoke Wheel 21 "x 2.15" fits FXST, FXDWG, 1984-1999. Hub has holes for 5/16" brake mounting hardware. 3/4" Timken style tapered bearings are pre-installed. Hub is chrome plated replica of wideglide style 6.5 inch wide Harley Davidson® factory 84-99 hubs.

(fits Moto Iron Springers)

Note: If installing this wheel on a Moto Iron or similar brand springer front end, you must also purchase Part #115-0027 wheel spacer to complete the installation. This spacer is to be installed on the flange side of the wheel. This spacer is not necessary if installing on OEM 1984 FXST or FXDWG (Wide Glide) front ends.

Front 40 Spoke Spool Hub Wheel 21 x 2.15

Unique Features:

• Triple chrome plated hub, spokes, and rim.

• Pre-Laced, trued, and ready to bolt-on.

• 3/4" ID sealed bearings for long life.

• Bearings are standard Harley #9267 style for easy replacement if ever required.

• Bearing dimensions are 52mm OD x 3/4 inch (19.05mm) ID, x 21mm width.

• Sealed rim for tube-less or tube-type tires.

Fitment Notes:

• These are universal chopper wheels. Custom wheel spacers will be required for your application.

• "Spool" hubs have no provisions for brake rotor mounting.

• Bearing dimensions are 52mm OD x 3/4 inch (19.05mm) ID, x 21mm width

Front 40 Spoke Spool Hub Wheel 21 x 2.15

Unique Features:

• Triple chrome plated hub, spokes, and rim.

• Pre-Laced, trued, and ready to bolt-on.

• 3/4" ID sealed bearings for long life.

• Bearings are standard Harley #9267 style for easy replacement if ever required.

• Bearing dimensions are 52mm OD x 3/4 inch (19.05mm) ID, x 21mm width.

• Sealed rim for tube-less or tube-type tires.

Fitment Notes:

• These are universal chopper wheels. Custom wheel spacers will be required for your application.

• "Spool" hubs have no provisions for brake rotor mounting.

• Bearing dimensions are 52mm OD x 3/4 inch (19.05mm) ID, x 21mm width

Black Rear 40 Spoke Wheel 16"X3"

Unique Features:

• Manufactured to exceed OEM specs.
• Precision CNC Machined billet aluminum hub. Much stronger than 3 piece welded hubs.
• 7/16" bolt holes for sprocket, 3/8" bolt holes for brake rotor.
• Triple chrome plated spokes, hub, and rim.
• Pre-Laced, trued, and ready to bolt on.
• 3/4" ID sealed ball bearings for long life.
• Bearings are standard Harley style for easy replacement if ever required.
• Sealed spokes & valve stem for tubeless type tires only. Not for use with tubes.
• Chrome valve stem included.

Fitment Notes:

• Fits FLT 2000-01, FXST 2000-07, FLST 2000-07, Dyna 2000-05, Sportster 2000-04
• Does NOT fit Softail Deuce models or 2006-2007 Softails with 17" cast rear wheels
• 3/4" ID Sealed Bearings
• For tubless type tires only. Not for use with tubes.
