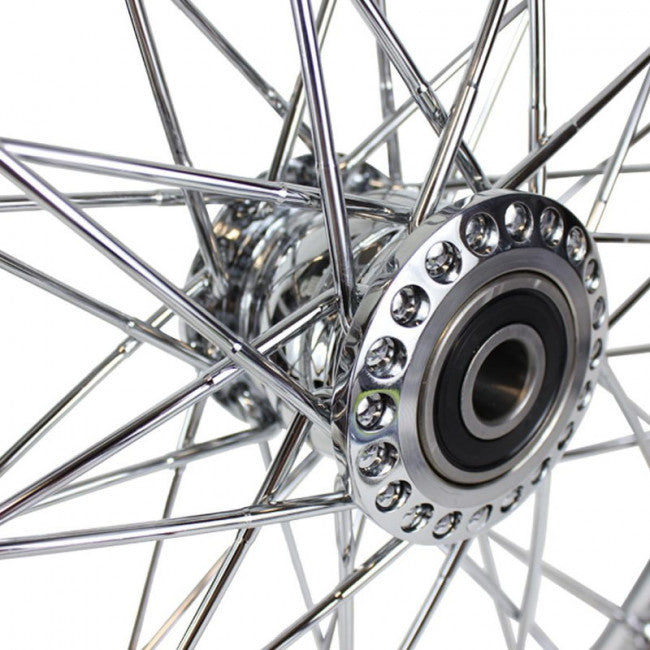

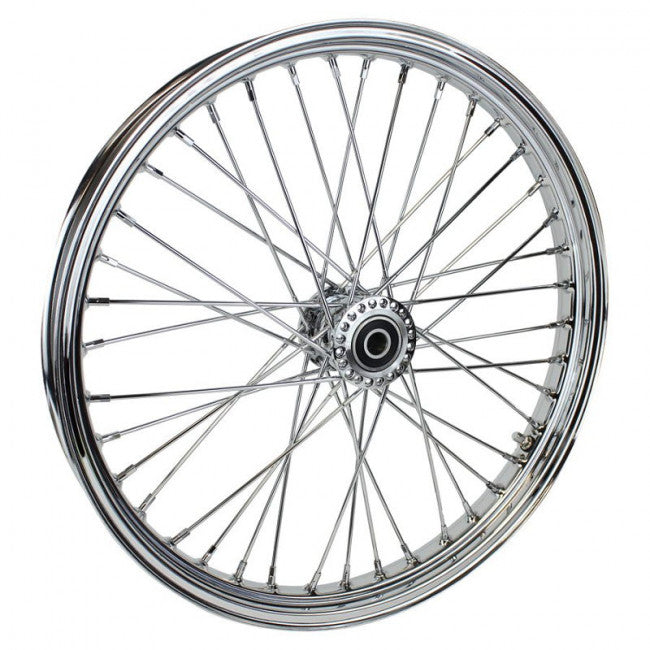

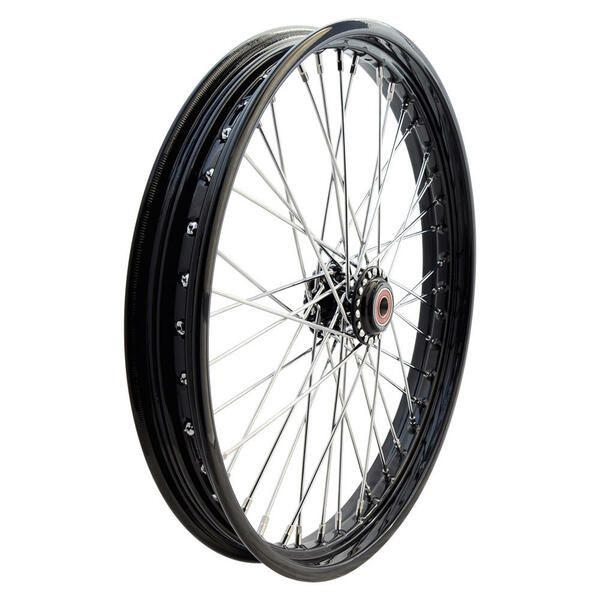

MID-USA Spool Wheel

Front 40 Spoke Spool Hub Wheel 21 x 2.15

Unique Features:

• Triple chrome plated hub, spokes, and rim.

• Pre-Laced, trued, and ready to bolt-on.

• 3/4" ID sealed bearings for long life.

• Bearings are standard Harley #9267 style for easy replacement if ever required.

• Bearing dimensions are 52mm OD x 3/4 inch (19.05mm) ID, x 21mm width.

• Sealed rim for tube-less or tube-type tires.

Fitment Notes:

• These are universal chopper wheels. Custom wheel spacers will be required for your application.

• "Spool" hubs have no provisions for brake rotor mounting.

• Bearing dimensions are 52mm OD x 3/4 inch (19.05mm) ID, x 21mm width

Front 40 Spoke Spool Hub Wheel 21 x 2.15

Unique Features:

• Triple chrome plated hub, spokes, and rim.

• Pre-Laced, trued, and ready to bolt-on.

• 3/4" ID sealed bearings for long life.

• Bearings are standard Harley #9267 style for easy replacement if ever required.

• Bearing dimensions are 52mm OD x 3/4 inch (19.05mm) ID, x 21mm width.

• Sealed rim for tube-less or tube-type tires.

Fitment Notes:

• These are universal chopper wheels. Custom wheel spacers will be required for your application.

• "Spool" hubs have no provisions for brake rotor mounting.

• Bearing dimensions are 52mm OD x 3/4 inch (19.05mm) ID, x 21mm width

Black Rear 40 Spoke Wheel 16"X3"

Unique Features:

• Manufactured to exceed OEM specs.
• Precision CNC Machined billet aluminum hub. Much stronger than 3 piece welded hubs.
• 7/16" bolt holes for sprocket, 3/8" bolt holes for brake rotor.
• Triple chrome plated spokes, hub, and rim.
• Pre-Laced, trued, and ready to bolt on.
• 3/4" ID sealed ball bearings for long life.
• Bearings are standard Harley style for easy replacement if ever required.
• Sealed spokes & valve stem for tubeless type tires only. Not for use with tubes.
• Chrome valve stem included.

Fitment Notes:

• Fits FLT 2000-01, FXST 2000-07, FLST 2000-07, Dyna 2000-05, Sportster 2000-04
• Does NOT fit Softail Deuce models or 2006-2007 Softails with 17" cast rear wheels
• 3/4" ID Sealed Bearings
• For tubless type tires only. Not for use with tubes.

Chrome  Rear 40 Spoke Wheel 16" x 3" Fits Harley Models 79'-99'

Unique Features:

• Manufactured to exceed OEM specs.
• Precision CNC Machined billet aluminum hub. Much stronger than 3 piece-welded hubs.
• 7/16" bolt holes for sprocket, 3/8" bolt holes for brake rotor.
• Triple chrome plated spokes, hub, and rim.
• Pre-Laced, trued, and ready to bolt on.
• 3/4" ID Timken style tapered roller bearings for long life.
• Bearings are standard Harley (Timken) style for easy replacement if ever required.
• Sealed spokes & valve stem for tubeless and tube-type tires.
• Chrome valve stem included.

Fitment Notes:

• Fits All Harley Models 1979-99 except Touring Models (FLH & FLT) and 1979 Sportster
• 3/4" ID Bearings
• For tubeless or tube-type tires.

Big Twin '73-'84 40 Spoke Wheel 16 x 3.00

Black Front/Rear Wheel
Dual 7/16" Flange
Tapered 3/4" Bearing
16 x 3.00 Size
Fits Big Twin 1973/1984

• Drop center steel rims
• Chrome spokes
• Available with OE chrome hub or black hub and rim
• Includes bearings and seals
• * When replacing models equipped with 19" wheels with these 21" wheels you must mock-up the wheel without the tire mounted and check for wheel spokes to brake caliper clearance. If wheel spokes contact the brake calipers, you must purchase custom shallow brake calipers.
