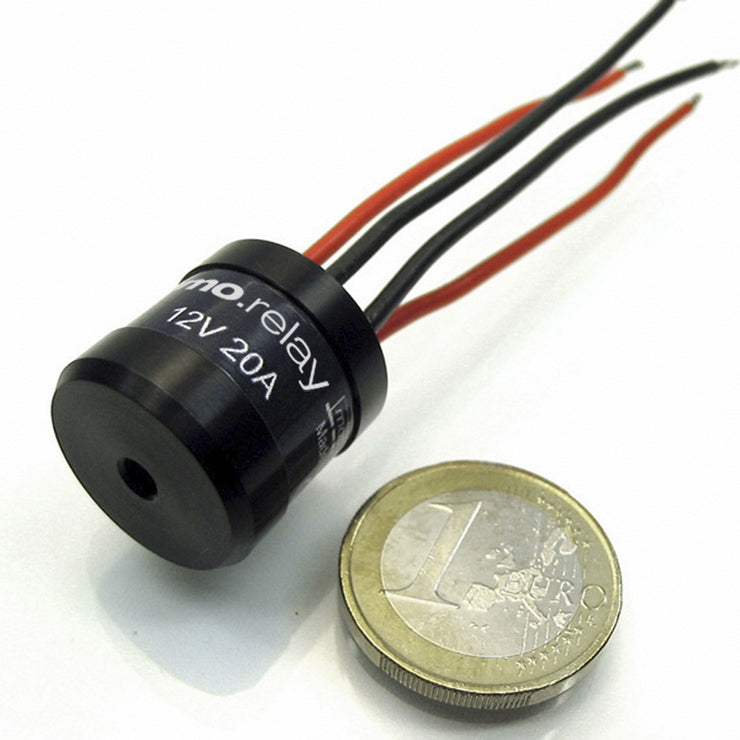

Name: Motogadget mo.relay Standard
Brand: motogadget
Price: 48.0 CAD
Availability: OutOfStock

Motogadget mo.unit blue

$570.00

mo.unit blue

The new m.unit blue has moved on from the established previous version by undergoing significant development and improvements. It is now equipped with 12 inputs and 10 outputs, replaceable high-quality cable clamps, and, most notably, Bluetooth® LE. This enables the m.unit blue to be connected to our ‘m.ride’ smartphone App. This feature is unique for motorbike accessories.

The m.ride App manages the entire setup and alarm system. Fault diagnostics can also be performed during operation and without having to remove the m.unit. The secure, encrypted Keyless Go function can also be used.

When this function is activated and you approach your motorbike with your smartphone, the onboard electrical system is activated and the motorbike is ready to be started.

The m.unit blue is the digital control unit for your motorbike – the heart of the entire onboard electrical system. It can be operated using buttons or using conventional handlebar switches. It controls all necessary components of the vehicle while also performing fuse functions.

There are considerably fewer relays and individual components in the wiring harness and the vehicle can be rewired with less effort in a very short amount of time.

When using the m.button, all switch connections are reduced to one single cable.

Features WITHOUT smartphone and m.ride App

Complete digital control using buttons possible with 4 or 5-button operation.
Complete replacement for the fuse box. 10 independent circuits are digitally monitored and switched off if there are faults. After the fault is rectified, the safety function is automatically reset.
An integrated alarm system that can be installed in any position.
Integrated, digital flasher relay that is load-independent; automatic switch-off optional and can be set; m.wave mode can be selected.
Integrated hazard warning light.
The turn signal can optionally be set as a positioning light.
Integrated parking light and headlight flashing.
Lo-beam and Hi-beam (up to 200 W switched capacity) can be controlled using only one button.
Integrated, digital brake light modulator; flashing mode can be programmed.
Acceleration-controlled emergency brake light (automatic warning signal).
Integrated starter relay for the starter system with solenoid (up to 30 A switched capacity).
Intelligent and configurable management/switch-off of power-consuming devices so that the maximum starting energy from the battery can be used when starting the motorbike.
Integrated, digital horn relay.
Two configurable additional outputs AUX1 and AUX2.
Diagnostics function for assigning inputs, outputs, the circuit switching status, short circuit diagnostics, etc.
Calibration and current measurement enable faults to be detected on all lamps.

Features WITH smartphone and m.ride App

Encrypted connection via Bluetooth® LE (Low Energy) for manipulation protection and lower smartphone and m.unit blue energy usage.
Keyless Go (the onboard electrical system is switched on when you approach the motorbike with your smartphone).
Alarm events are sent via Bluetooth® to the App (with date, time, vehicle on the floor, etc.).
Alarm system mode and sensitivity can be adjusted.
The onboard voltage can be monitored in the App.
Diagnostics on all inputs and outputs; current, voltage, and device temperature measurement.
Real-time audio fault messages are issued via the helmet headset.
Outputs can be switched manually via smartphone (except for starters).
Firmware updates are provided anywhere via smartphone and App without removal.
The setup menu can be configured anywhere via smartphone and App without removal.
Speedometer input for comparing the vehicle mileage with m.ride can be used for vehicle management with automatic alerts for maintenance tasks, the condition of the tires, chain, brake pads, oil, operating fluids, spark plugs, etc.
Logbook for recording journeys and displaying the vehicle status, alarm events, and maintenance tasks.
Parking position display and Ping! for help locating the vehicle.
LIN bus connection for connecting to compatible motogadget products at a later date.

Technical requirements

The m.ride App is available for Android devices on the list below. The version for iOS is available for iPhone 5 and later.

Bluetooth 4.0 require the latest generation of smartphones. We guarantee full functionality with recent software updates on explicit all following Android devices ONLY:

Samsung Galaxy S8/S8+

Samsung Galaxy S7/S7 Edge

Samsung Galaxy S6/S6 Edge

Samsung Galaxy S5/S5 Neo

Samsung Galaxy Note 4

Samsung Galaxy Tab S2 10.5

Samsung Galaxy Tab A (2016)

Samsung Galaxy Note 5

Google Pixel/ Pixel XL

Google Nexus 5

Google Nexus 5X

LG G4

LG G5

Sony Experia Z3 Compact

OnePlus 3/OnePlus 3T

Huawei P9/ P9 Plus

Further information on the App can be found at mride.de or in Google Play and iTunes.

Scope of delivery

m.unit blue
1 x M5 stainless steel bolt
2 x M5 stainless steel bolts with nut
1 x speed sensor with 2 magnets
Detailed installation and operating instructions

Specifications and features

L/W/H	90 x 53 x 30 mm, bolt distance 74 mm
Weight	Approx. 180 g
Fastener	2 x M5 stainless steel bolts (installation and ground connection), 1 x M5 screwing contact for battery Plus
Operating voltage	6 V - 20 V
Operating temperature	-20°... +80°C
Inputs	1 x input (+12 V switched) for the ignition lock or m.lock 11 x control input (minus/switched to ground) for: Left turn signal Right turn signal Lo/Hi-beam Starter Horn Brake light Kill switch Stand switch LIN bus AUX1 AUX2
Outputs	10 x Outputs (+12V) for: Left turn signal Right turn signal Lo-beam Hi-beam Starter Horn Brake light Ignition AUX1 AUX2

Motogadget m.unit Cable Kit

$115.00

m.unit Cable Kit

The m.unit Cable Kit is a ready-made set of cables to aid in the assembly of a wiring harness.

This cable kit consists of top-grade copper-strand cables and will help you do quick work of creating a new wiring harness.
The different cable diameters and colors are ideally suited for application in connection with the m.unit. Their number and length are sufficient for most models.
Non-professionals would have to put serious effort into an equivalent assembly.
Additionally, the kit contains multiple cable ties and cable end sleeves. Altogether 1 kg of cables and materials.

Parts delivered

Cable color	Diameter	Length [m]
brown	2,5 mm²	5
black	2,5 mm²	4
blue	2,5 mm²	2
white	1,5 mm²	4
red	1,5 mm²	2
yellow	1,5 mm²	4
orange	1,5 mm²	4
green	1,5 mm²	2
purple	1,5 mm²	2
white	0,5 mm²	2
blue	0,5 mm²	2
red	0,5 mm²	2
yellow	0,5 mm²	2
green	0,5 mm²	2
orange	0,5 mm²	2
purple	0,5 mm²	2
brown	0,5 mm²	2

Cable tie small 15
Cable tie big 15
Cable end sleeves small 10
Cable end sleeves medium 10
Cable end sleeves big 10
Manual

Prism Supply Co DIY Electrical Kit

$175.00 $148.00

DIY Electrical Kit

Not sure what to order for your electrical kit? We've got you covered! This kit is designed to wire the majority of any non-electric start choppers or cafe racers. (Wiring for an electric starter requires a larger gauge ground wire and power wire which isn't included)

If you feel like you may need an extra wire you can always purchase some of the Prism vintage cloth wire.

The electrical kit includes the following:

Tackle Box
2 x 6 in - 1/2" heat shrink
3 x 6 in - 1/4" heat shrink
3 x 6 in - 0.19" heat shrink
1 - Universal 3-Position Key Switch
10 - Male Quick Disconnect
10 - Female Quick Disconnect
10 - Butt Splice
5 - 1/4" Ring terminal
10 - #10 Ring Terminal
4 ft - 1/4" Heat Resistant Loom (fits 3 wires through it)
4 x 10ft sections of 16 gauge electrical wire (Black, White, Brown, and Green)
10 - 6" zip ties
1 - Auto Re-Setting Circuit Breaker Kit

Motogadget mo.unit battery cable with fuse

Motogadget mo.unit battery cable with fuse

$70.00

mo.unit battery cable with fuse

The mo.unit battery cable with fuse is the possible connection cable between every mo.unit and the vehicle battery. It has an integrated main fuse with a maximum current load of 40 A.

This high-quality copper cable has high conductivity and comes with an integrated fuse holder, 2 fuses, 2 cable eyelets for crimping and 2 pieces of shrink tubing. A cable eyelet and a shrink tube are already pre-assembled.
The total length is 160 cm

scope of delivery

1 x connection cable with a cross-section of approx.8.4 mm² (AWG 8) and 160 cm in length, 1 x integrated fuse holder, 2 x 40 A fuse, 2 x cable eyelet, 2 x shrink tubing

Prism Supply Co Vintage Cloth Covered 16g Electrical Wire - Brown/Black Tracers

Prism Supply Co Vintage Cloth Covered 16g Electrical Wire - Brown/Black Tracers

$15.00

Vintage Cloth Covered 16g Electrical Wire - Brown

Replace your existing wire with this vintage braided 16 gauge wire. We offer this wire in many different colours for that ultimate custom look. This wire consist of a multi-strand copper conductor with PVC insulation and one layer of cotton braid & lacquer. Made in the USA. Sold in 10' sections.

Brown with Black Tracers
10' Long
16 Gauge
PVC Insulation

Diameter without cable	19 mm
height	19 mm
