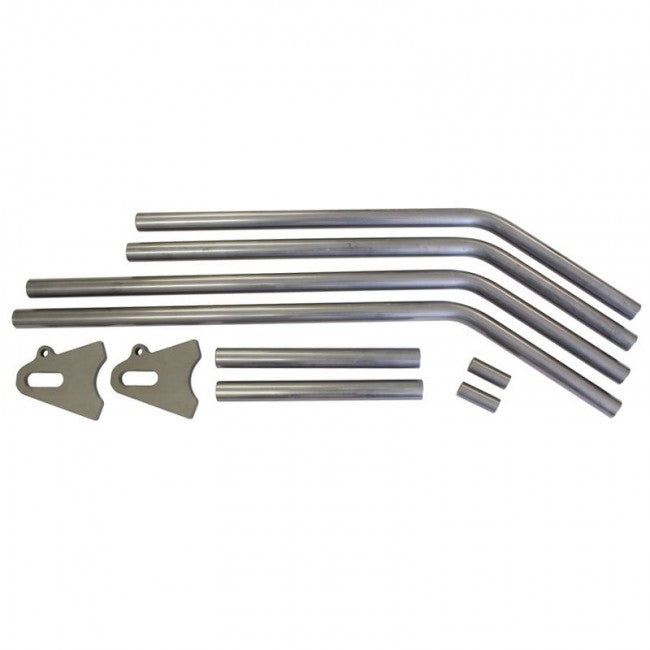

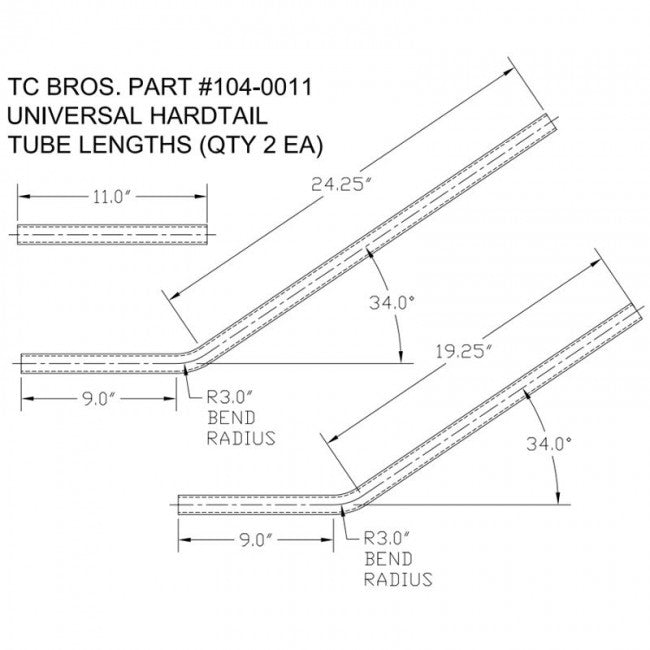

TC Bros. Universal Hardtail Chopper Frame Kit. Tubing is 1 1/8" Diameter Steel with .120 (about 1/8" wall thickness. This tubing is the same as we use on our XS650 & CB750 weld on hardtails. The axle plates are cut from 3/8" thick steel and have an integrated mounting tab for easy fender mounting. The axle slots are 20mm (.787") which is a common metric axle size. In addition to the cross tubes offered, we also include solid cold-rolled steel slugs that fit tightly into the inner diameter of the tubing for joining the hardtail to the stock frame tubes.
This is perfect for builders out there looking to do a unique bike. You can determine stretch, ground clearance, width, etc. Fitment possibilities are nearly endless. Remember that since this kit is universal, you will be responsible for modifying your frame and making this kit fit and function properly. All modification is done at your own risk.
Made In the USA.
