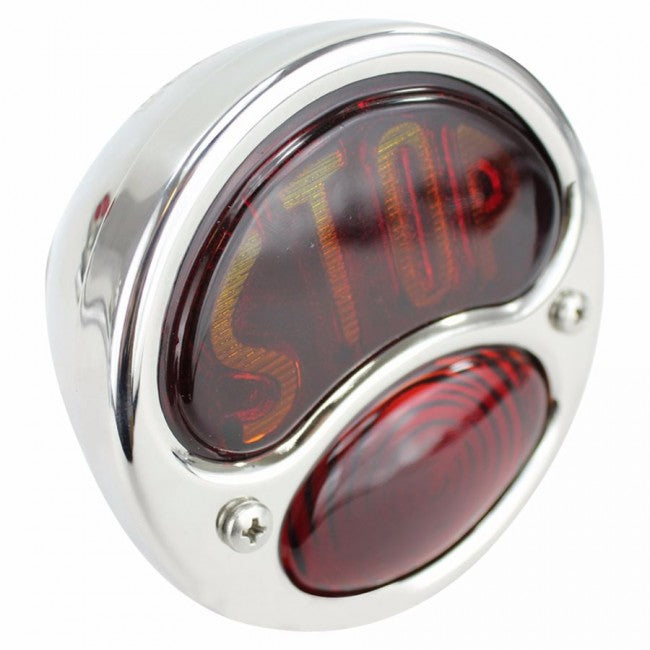

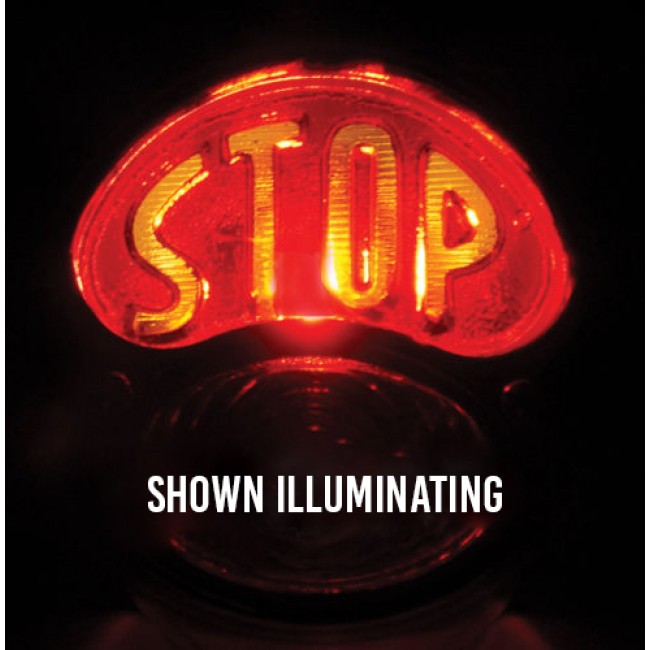

Ford "Stop" Duolamp Model A Stainless Steel Tail Light

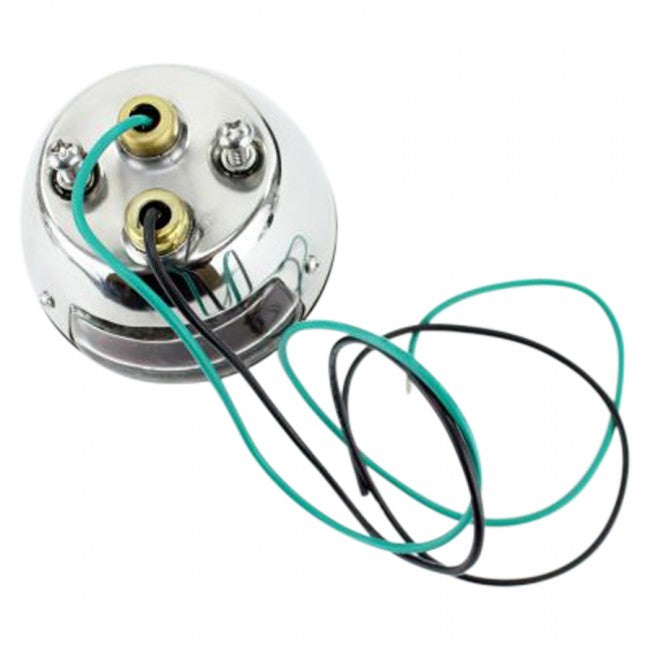

TC Bros. Polished stainless steel 12V Ford "STOP" Duolamp reproduction tail light with red glass lens. Light features both a brake/running light as well as a License plate light to illuminate your plate at night. The two wire hook-up for the brake and tail lights mean this light is self grounding through its housing. The black wire is the 12V positive running light hookup. The green wire is the 12V positive brake light hookup. Light features standard automotive style bulbs (#1156 for Brake Light, and #67 miniature for Running Light). Replacement bulbs are easily sourced from local autoparts stores should you ever require. These lights measure 3 3/4" in diameter, 2 1/4" deep. The mounting studs are 1 3/4" center to center. Great light for your old school bobber or chopper! Note: For best results on high-vibration applications, isolate the tail light mount with rubber grommets.
This is the Prism version of the "RH-55 Guide Light" that originally came on Panheads and Ironheads. Overall dimensions are 3.375" x 2.5" x 1" thick, 30% smaller than the original. All light assemblies consist of the following:
Injection Molded Prism Supply Lens
Dual brightness 1.85" diameter waterproof LED for running and brake lights
Stainless steel mounting hardware
Prism Supply Co - Box Chopper Tail Light
Box Chopper Tail Light
This is the Prism version of the old style "Chopper Box light." It's equipped with a dual function LED cluster that acts as both a brake light and running light. The size of the Prism version housing is 4-1/4" long X 3/4" wide X 2-1/8" in height while the size of the original style is 4-1/4" long 2" wide and 2" in height. The wires exit through the back of the housing. The housing is made of aluminum which gives you the option for polish, chrome, powdercoat or just leave raw.
All lights come with a two stainless steel 1/4-28 bolts spaced 3.5" apart for mounting.
Prism Supply Co Ripple Tail Light (Weld-On)
Ripple Tail Light (Weld-On)
These tail lights are perfect for that weld-on application. Works great welded to a sissy bar moulded to a frame or welded to a license bracket.
These dual-function 1.25" LEDs act as a brake light and running light. The size of the housing is 1 7/8" diameter x 1" long.
Stainless or mild steel options are available.
Will come with flat and dome lens.
Prism Supply Co Bullet Tail Light
Bullet Tail Light
The Prism Supply take on the classic bullet light. This taillight includes a dual function 1.25" LED that acts as a brake light and running light. The housing is made of aluminum and the size of the housing is 1-3/4" diameter by 2-7/16" long. The wires exit through the bottom of the housing through the bolt.
All lights come with a stainless steel lock washer and a milled 5/16 hex head bolt (hex bolt not pictured) for mounting.
Prism Supply Co 1.25" Speedster Tail Light
1.25" Speedster Tail Light
These dual-function 1.25" LEDs act as a brake light and running light. The size of the housing is 1-1/2" diameter by 1-1/16" long. The wires exit through the bottom of the housing.
All lights come with a stainless steel lock washer 3/8 bolt for mounting and a universal mounting bracket.
