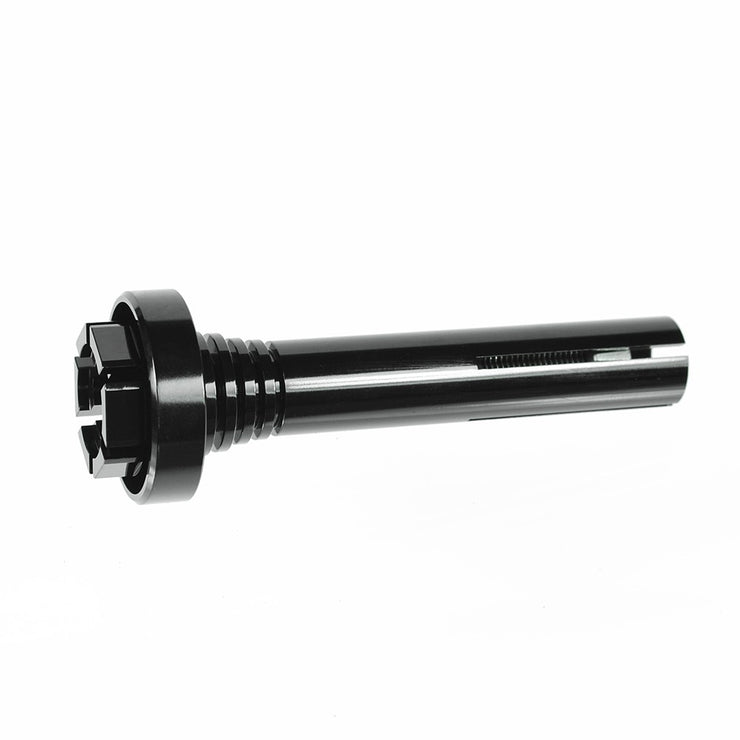

Dimensions
Fits all handlebars with 22 mm, 7/8 and 1 inch with a free inner diameter of 12 to 21 mm
Total length: approx. 105 mm, at least 90 mm free inner tube length required
Width of the clamping surface for mirrors: 8 mm, fits all mo .view handlebar end mirror
Diameter of the clamping surface: 1 inch, fits all mo.view handlebar end mirror
Weight (1 piece): 55 g Scope of
delivery
2 x bar adapter uni disc / cone, instructions
Prism Supply Co. Triple Tree Mirror Mount - 39mm
Regular price $115.00If you're looking to clean up your handlebars and still run a mirror, we have the solution for you. This kit eliminates any handlebar mirror clamp and allows you to run it directly to your top triple tree on a 39mm front end. The 39mm kit requires an adapter piece which is why the subtle price increase. The mirror stems and adapters are made from stainless steel.
The mirrors are 3" in diameter and come in a chrome finish
39mm Thread: 3/8-16
Motogadget mo.view cafe (ECE)
Regular price $159.95Dimensions
Diameter of mirror body: 96 mm
The thickness of the mirror body without the ball head: 4,2 mm
Length of the stem: 61 mm
The inner diameter of the clamp: for 22 mm and 1-inch handlebar
Clamping width: 12 mm
Weight: 142 g
Motogadget mo.view cruise (ECE)
Regular price $159.95Dimensions
Width of mirror body: 114 mm
Height of mirror body: 80 mm
The thickness of the mirror body without the ball head: 4,5 mm
Length of the stem: 60 mm
The inner diameter of the clamp: for 22 mm and 1-inch handlebar
Clamping width: 10 mm
Weight: 125 g

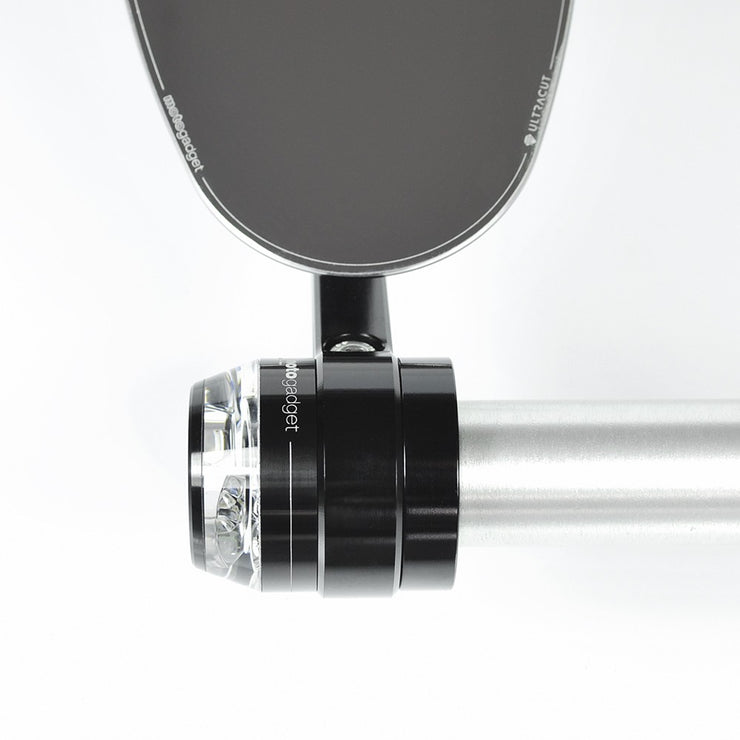

Motogadget mo.view bar adapter
Regular price $139.95The mo.view bar adapter allows the mounting of all mo.view handlebar end mirrors without moving the handles, switchgear or fittings on the handlebars. It creates a clamping surface for the handlebar end mirror outside the handlebar tube. It fits for the mo.view blade, mo.view spy, mo.view flight, mo.view cafe or mo.view road.
It is CNC machined from billet aluminum and black anodized. The screwable cover is concave and designed with a crown on the outside. The clamping in the handlebar end is done by tightening an M6 screw under the cover, which expands the clamping pieces and makes a stable installation possible.
The mo.view bar adapter comes with two clamps for the left and right side of the handlebar. They fit perfectly to our handles mo.grip as well as to the push-button gear mo.switch and mo.switch mini.
They are mounted directly in the handlebar end (22 mm, 7/8 and 1 inch) with a free inner diameter of 12 to 21 mm.
Dimensions
Fits all 22 mm, 7/8 and 1-inch handlebars with a free inside diameter of 12 to 21 mm
Total length: approx. 45 mm, at least 30 mm free inner tube length required
Width of the clamping surface for mirrors: 8 mm, fits all mo.view handlebar end mirrors
The diameter of clamping surface: 1 inch, fits all mo.view handlebar end mirrors
Weight (1 piece): 68 g
