Motogadget mo.view bar adapter

Mo.View Bar Adapter

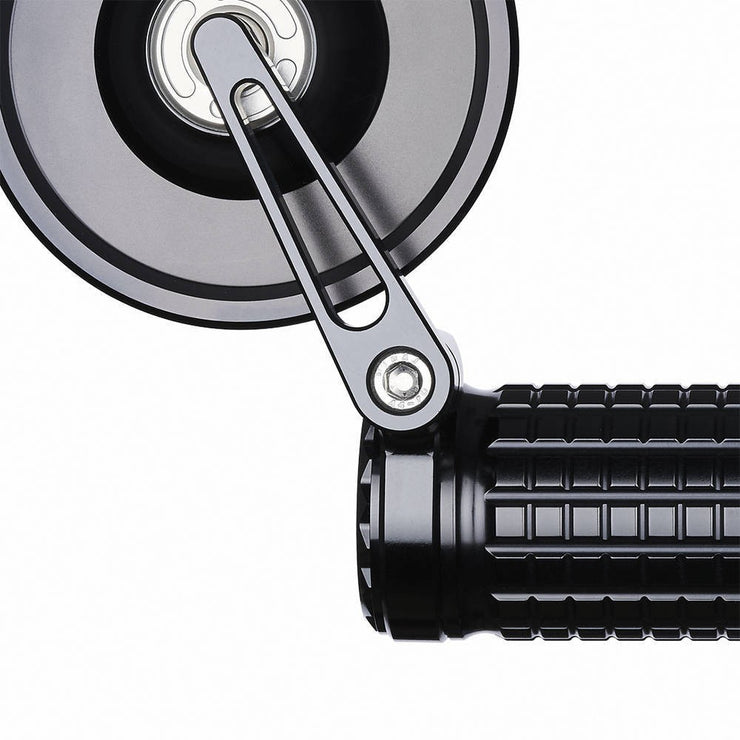

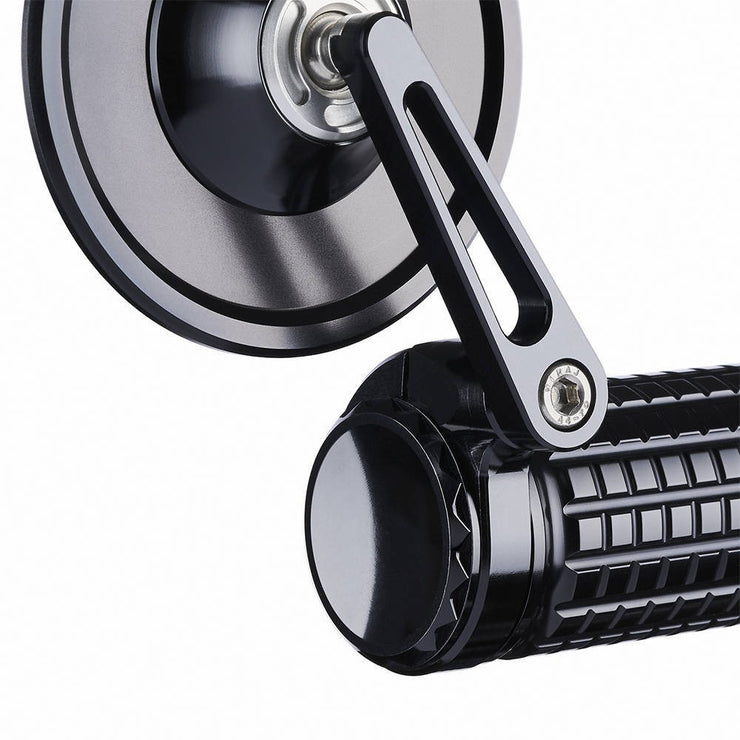

The mo.view bar adapter allows the mounting of all mo.view handlebar end mirrors without moving the handles, switchgear or fittings on the handlebars. It creates a clamping surface for the handlebar end mirror outside the handlebar tube. It fits for the mo.view blade, mo.view spy, mo.view flight, mo.view cafe or mo.view road.

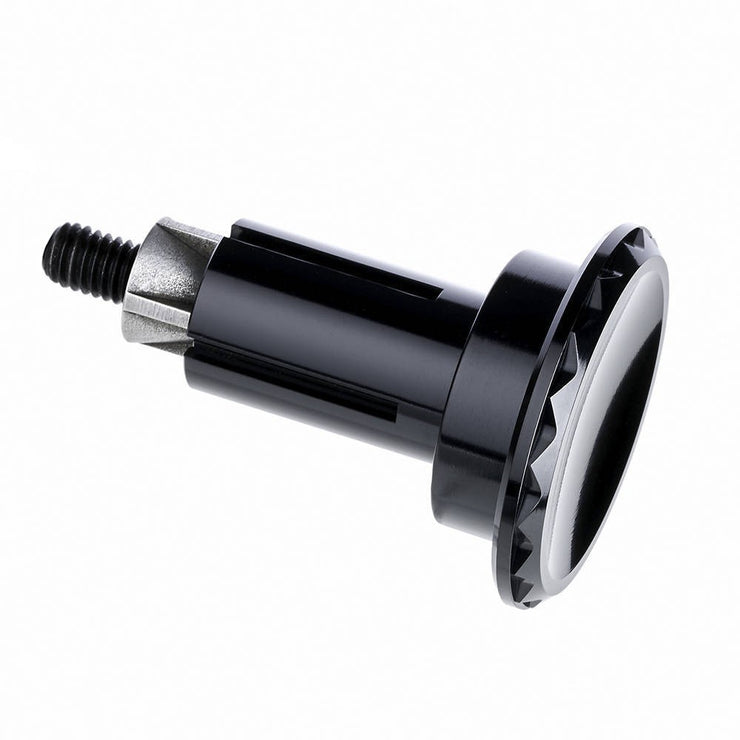

It is CNC machined from billet aluminum and black anodized. The screwable cover is concave and designed with a crown on the outside. The clamping in the handlebar end is done by tightening an M6 screw under the cover, which expands the clamping pieces and makes a stable installation possible.

The mo.view bar adapter comes with two clamps for the left and right side of the handlebar. They fit perfectly to our handles mo.grip as well as to the push-button gear mo.switch and mo.switch mini.

They are mounted directly in the handlebar end (22 mm, 7/8 and 1 inch) with a free inner diameter of 12 to 21 mm.

Dimensions

Fits all 22 mm, 7/8 and 1-inch handlebars with a free inside diameter of 12 to 21 mm
Total length: approx. 45 mm, at least 30 mm free inner tube length required
Width of the clamping surface for mirrors: 8 mm, fits all mo.view handlebar end mirrors
The diameter of clamping surface: 1 inch, fits all mo.view handlebar end mirrors
Weight (1 piece): 68 g
