Name: Prism Supply Co. Triple Tree Mirror Mount - 39mm
Brand: Prism Supply Co
Price: 115.0 CAD
Availability: OutOfStock

Prism Supply Co. Triple Tree Mirror Mount - 39mm

Prism Supply Co. Triple Tree Mirror Mount - 39mm

$115.00

Triple Tree Mirror Mount - 39mm

If you're looking to clean up your handlebars and still run a mirror, we have the solution for you. This kit eliminates any handlebar mirror clamp and allows you to run it directly to your top triple tree on a 39mm front end. The 39mm kit requires an adapter piece which is why the subtle price increase. The mirror stems and adapters are made from stainless steel.

The mirrors are 3" in diameter and come in a chrome finish

39mm Thread: 3/8-16

Motogadget mo.view cafe (ECE)

$159.95

Mo.View Cafe (ECE)

motogadget now exclusively presents its glassless mirror series mo.view. The special feature of this motorcycle mirror is the patented mirror surface, which is worked directly into the metal of the body. The Aluminium itself is the mirror surface!
A weightless design without edge and frame is possible and the mirror body itself becomes very thin and light.
Shattered glass or fallen-out glass is simply not possible!

The convex mirror surface is produced in fly cutting by means of diamond tools on ultra-precision machines. It is then made resistant to oxidation, corrosion, and scratches by a complex plasma coating process in a vacuum.

The mirror body, mirror arm, and clamping for the handlebar end are milled on CNC machined from solid aluminum and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows a comfortable and very stable adjustment of the mirror.

mo.view cafe

The handlebar end mirror mo.view street is small with a reduced design. It fits perfectly with our bar end indicators and the mo.grip as well as the push-button controls mo.switch and mo.switch mini. It can be mounted above or below the handlebars. The mirror is suitable for the right and left sides. It is mounted directly on the handlebar end or - if you cannot move your grips and controls - with the mo.view bar adapter.

Dimensions

Diameter of mirror body: 96 mm
The thickness of the mirror body without the ball head: 4,2 mm
Length of the stem: 61 mm
The inner diameter of the clamp: for 22 mm and 1-inch handlebar
Clamping width: 12 mm
Weight: 142 g

Motogadget mo.view cruise (ECE)

$159.95

Mo.View Cruise (ECE)

motogadget now exclusively presents its glassless mirror series mo.view. The special feature of this motorcycle mirror is the patented mirror surface, which is worked directly into the metal of the body. The Aluminium itself is the mirror surface!
A weightless design without edge and frame is possible and the mirror body itself becomes very thin and light.
Shattered glass or fallen-out glass is simply not possible!

The convex mirror surface is produced in fly cutting by means of diamond tools on ultra-precision machines. It is then made resistant to oxidation, corrosion, and scratches by a complex plasma coating process in a vacuum.

The mirror body, mirror arm, and clamping for the handlebar end are milled on CNC machined from solid aluminum and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows a comfortable and very stable adjustment of the mirror.

mo.view cruise

The handlebar end mirror mo.view street is small with a reduced design. It fits perfectly with our bar end indicators and the mo.grip as well as the push-button controls mo.switch and mo.switch mini. It can be mounted above or below the handlebars. The mirror is suitable for the right and left sides. It is mounted directly on the handlebar end or - if you cannot move your grips and controls - with the mo.view bar adapter.

Dimensions

Width of mirror body: 114 mm
Height of mirror body: 80 mm
The thickness of the mirror body without the ball head: 4,5 mm
Length of the stem: 60 mm
The inner diameter of the clamp: for 22 mm and 1-inch handlebar
Clamping width: 10 mm
Weight: 125 g

Motogadget mo.view bar adapter

$139.95

Mo.View Bar Adapter

The mo.view bar adapter allows the mounting of all mo.view handlebar end mirrors without moving the handles, switchgear or fittings on the handlebars. It creates a clamping surface for the handlebar end mirror outside the handlebar tube. It fits for the mo.view blade, mo.view spy, mo.view flight, mo.view cafe or mo.view road.

It is CNC machined from billet aluminum and black anodized. The screwable cover is concave and designed with a crown on the outside. The clamping in the handlebar end is done by tightening an M6 screw under the cover, which expands the clamping pieces and makes a stable installation possible.

The mo.view bar adapter comes with two clamps for the left and right side of the handlebar. They fit perfectly to our handles mo.grip as well as to the push-button gear mo.switch and mo.switch mini.

They are mounted directly in the handlebar end (22 mm, 7/8 and 1 inch) with a free inner diameter of 12 to 21 mm.

Dimensions

Fits all 22 mm, 7/8 and 1-inch handlebars with a free inside diameter of 12 to 21 mm
Total length: approx. 45 mm, at least 30 mm free inner tube length required
Width of the clamping surface for mirrors: 8 mm, fits all mo.view handlebar end mirrors
The diameter of clamping surface: 1 inch, fits all mo.view handlebar end mirrors
Weight (1 piece): 68 g

Motogadget Bar Adaptor Uni Disc Cone

$150.00

Bar Adaptor Uni Disc Cone

Please note: one pack contains 2 adapters.

The bar adapter uni disc/cone enables the installation of all mo.view handlebar end mirrors in combination with the mo.blaze handlebar end indicators without having to move the handles or fittings on the handlebars.
It creates a clamping surface for the handlebar end mirror outside the handlebar tube and at the same time enables the handlebar end indicator to be installed. Whether for the mo.view blade, mo.view spy, mo.view flight, mo.view cafe, mo.view road, mo.view pace, mo.view cruise and mo.view street.

It is CNC machined from billet aluminum and anodized in black.
The end of the handlebar is clamped by tightening an M6 screw inside the adapter, which expands the clamping pieces and enables stable assembly. Then the mirror clamp is tightened on the adapter and the handlebar end indicator is clamped at the same time.

The bar adapter uni disc/cone is supplied with two clamping pieces for the left and right sides of the handlebar. They fit perfectly with our mo.grip handles and the mo.switch basic and mo.switch mini push-button fittings.

The assembly takes place directly in the handlebar end (22 mm, 7/8 and 1 inch) with a free inner diameter of 12 to 21 mm (without internal thread) and a length of 90 mm.

Specifications and features

Dimensions

Fits all handlebars with 22 mm, 7/8 and 1 inch with a free inner diameter of 12 to 21 mm
Total length: approx. 105 mm, at least 90 mm free inner tube length required
Width of the clamping surface for mirrors: 8 mm, fits all mo .view handlebar end mirror
Diameter of the clamping surface: 1 inch, fits all mo.view handlebar end mirror
Weight (1 piece): 55 g Scope of

delivery
2 x bar adapter uni disc / cone, instructions

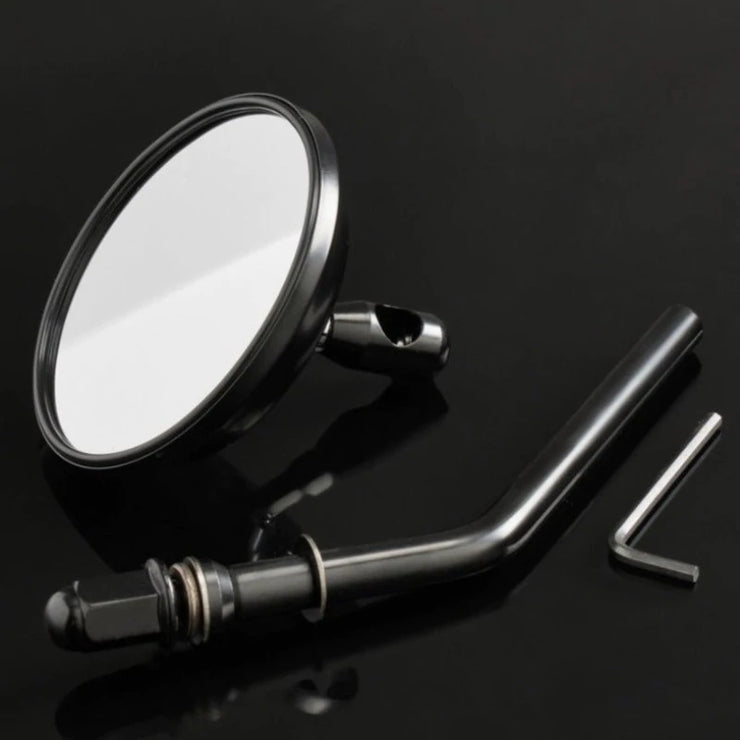

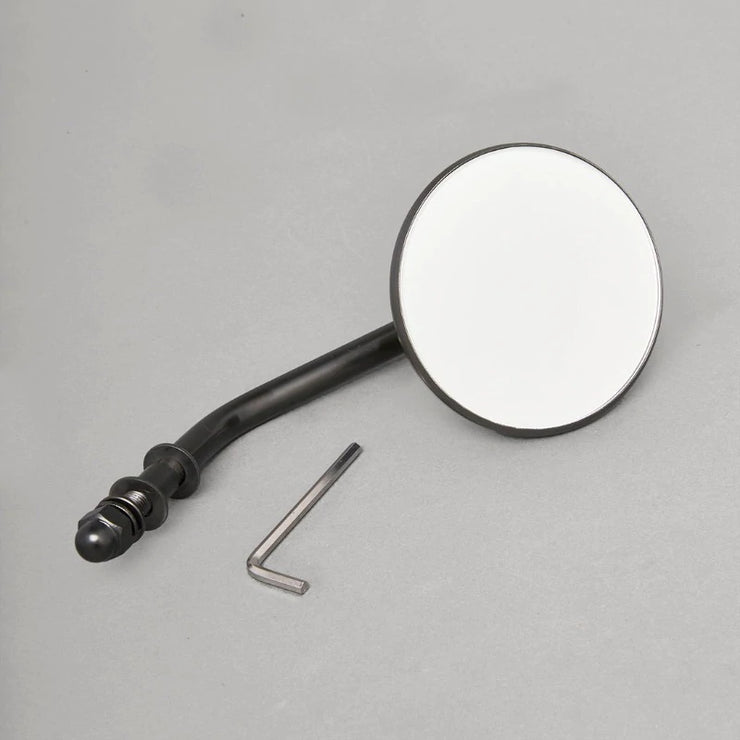

TJ Brutal Mini Chopper Mirror Black 3"

Mini Chopper Mirror Black 3"
